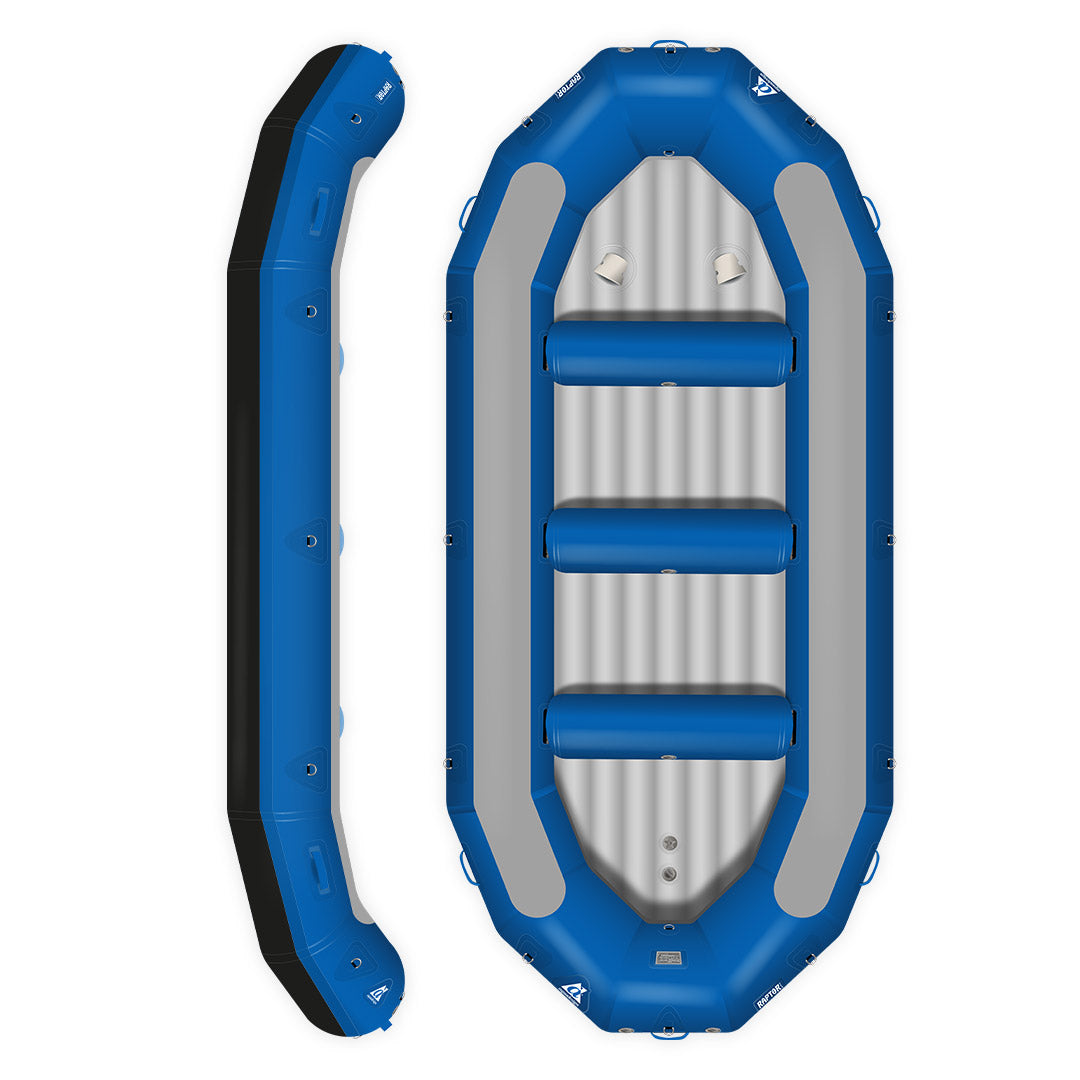

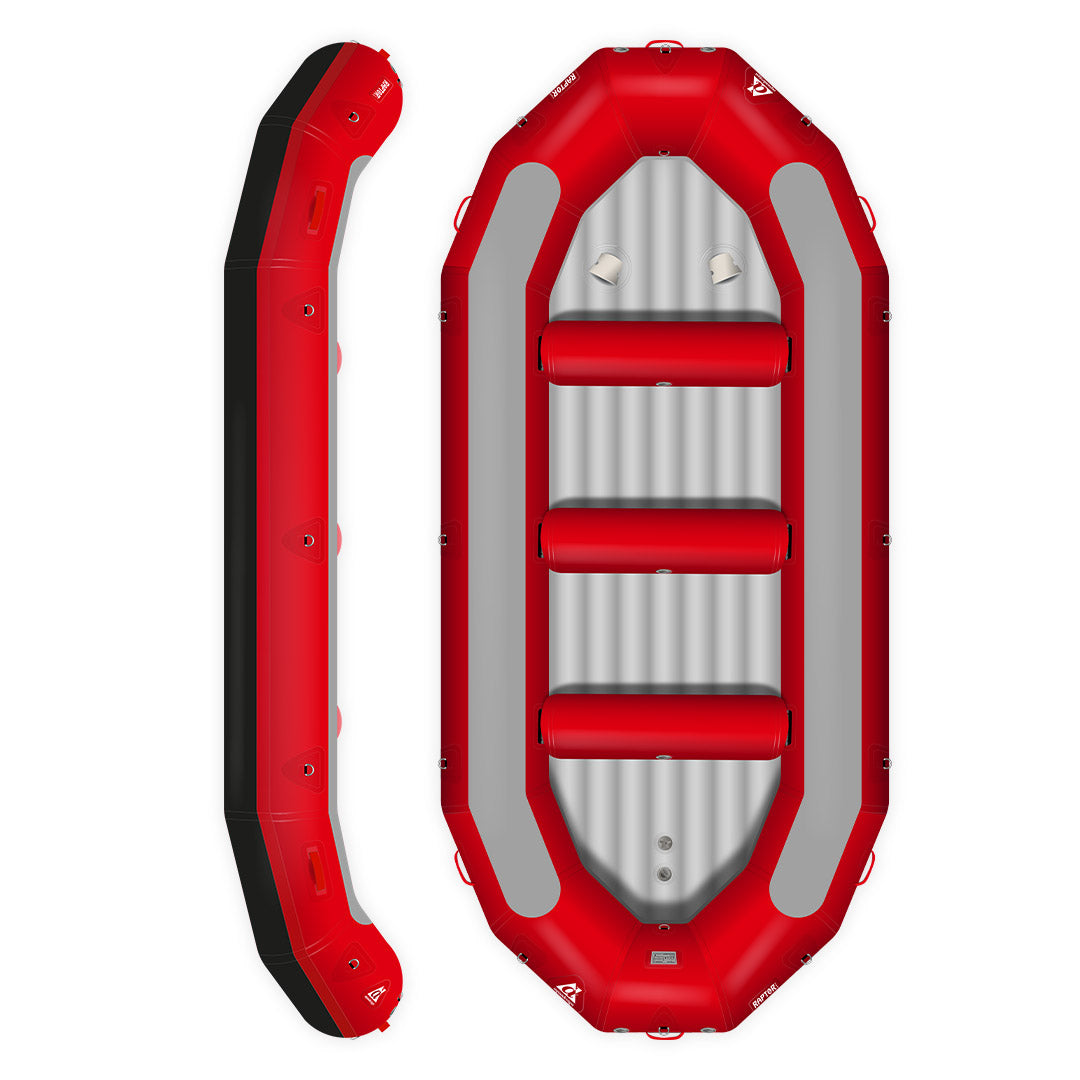

RAPTOR 455 - HYPALON RAFT FOR 11 PEOPLE

RA3233_R

Price
€6.247,99
€6.247,99

The Aquadesign RAPTOR 455 is a professional Hypalon Achiles® raft capable of accommodating 10 people . Its 50 cm tubes , 207 cm width , and generous rocker ensure a high and perfectly maneuverable ride in rapids. Its reinforced construction with 1680 DTEX Hypalon and Black Gum Sheet provides extreme resistance to impacts and wear. For added safety, it features double-chamber tubes , a Leafield A6 overpressure valve , and a high-performance self-bailing floor . With its three removable thwarts secured by clips , it is the essential partner for expeditions and professional rafting activities.

Color
Available In Stock
Free return
2-year warranty
RAPTOR 455 - HYPALON RAFT FOR 11 PEOPLE
  • Overview
  • Specifications
BENEFITS

KEY STRENGTHS

  • Zoom du système de fixation des thwarts amovible des rafts Aquadesign

    REMOVABLE THWART

    For maximum versatility, the thwarts are removable thanks to a system of bars.

  • Zoom du foot cup des raft Aquadesign sur fond à ailettes

    FOOT CUP SHOES

    The Raptor range is equipped with two foot cups that fit at the front of the rafting boat.

  • CARRYING HANDLE

    Reinforced handles, doubled and sewn at the base to ensure easy, comfortable and durable transport.

  • 10 CM RAGING BAND

    For optimal side protection and extended service life, the range is equipped with a rubbing strip.

  • RINGS D

    To ensure the safety of the entire crew, a lifeline is positioned around the perimeter of the raft.

  • Logo moulé du raft raptor 340

    XXXL LIFESPAN

    The RAPTOR range of Hypalon rafts offers a lifespan of up to 15 years, provided they are properly maintained and stored.

dimensions, weight and specs

Technical specifications

Capacity
11 Personnes
Length
455 cm / 15"
Width
207 cm / 6'8
Inner width
107 cm / 42"
Tube diameter
50 cm / 19"
Thwarts
3 Thwarts amovibles
Thwart diameter
30 cm / 12"
Number of air chambers
4 + 3 + 1
Safety valve
1 Leafield – A6
Self-bailing system
Trous auto videur
D-rings
16
Handles
6
Weight
76 kg / 167 Lbs
Maximum Load
<1200 kg / <2645 Lbs
Dessin de la decoupe d'un raft - construction et composant du raptor
RAPTOR RANGE

REINFORCED CONSTRUCTION

  1. Hypalon Achiles® 1100 Dtex fabric tube
  2. Non-slip seat support made of Hypalon Achiles® 1100 Dtex fabric
  3. Upper part of the finned bottom made of Hypalon Achiles® 1100 Dtex fabric
  4. Lower part of the finned bottom made of Hypalon Achiles® 1680 Dtex fabric
  5. 10 cm Chafing Strip
  6. Lower reinforcement of the tubes in Black Gum Sheet
DESCRIPTION, MATERIALS & ADVICE

LEARN MORE

Designed for challenging whitewater runs, the RAPTOR 455 Aquadesign raft is a high-volume model combining robustness, stability, and safety. Made of ultra-resistant Hypalon Achiles®, it can accommodate up to 11 people and offers exceptional durability against abrasion, UV rays, and hydrocarbons. Its massive 50 cm tubes, 207 cm width, and impressive rocker provide a high, maneuverable, and safe ride, even in the most demanding whitewater conditions.

Thanks to its high-volume design, the RAPTOR 455 offers optimal buoyancy and enhanced visibility for both the guide and crew. Its self-bailing floor efficiently drains water for smooth sailing, while its three removable thwarts with bar attachments allow for easy configuration adjustments to suit various needs. Whether for a professional expedition, a sporting outing, or a commercial trip, it adapts perfectly.

It features a reinforced construction: Hypalon Achiles® 1100 DTEX for the tubes and upper part of the base, complemented by Hypalon Achiles® 1680 DTEX on the lower part. A Black Gum Sheet reinforcement protects the bottom of the tubes against impacts and abrasion. Its non-slip Hypalon coating, supportive foot cups, and six reinforced handles ensure comfort and practicality in all situations.

For maximum peace of mind, the RAPTOR 455 features double-chamber tubes, offering twice the safety of a traditional raft. Its Leafield Marine A6 overpressure valve ensures controlled inflation. Sixteen reinforced D-rings with a lifeline complete the safety-focused equipment. With a capacity of 11 people (1200 kg load), this raft is the ideal partner for guides and thrill-seekers.

Hypalon Achiles® 1100 Dtex fabric tube, upper reinforcement (seat) in Hypalon Achiles® 1100 Dtex fabric, finned base in Hypalon Achiles® 1100 Dtex and 1680 Dtex fabric, Black Gum sheet, 10cm rubbing strip

A well-maintained RAPTOR raft made of Hypalon will provide you with many years of safe and intense adventures. To preserve its performance and longevity, adopt these best practices:

• Rinse after each outing

After each use, rinse your RAPTOR thoroughly with clean water.

✔️ Remove sand, mud and debris to prevent premature wear of the fabric.

✔️ Use a soft sponge to avoid damaging the surface of the Hypalon.

• Dry completely before storing

✔️ Never store your raft while it's wet.

✔️ Let it dry completely in the shade: Hypalon is quite resistant to UV rays, but prolonged drying in direct sunlight is still not recommended.

✔️ Check that all chambers and the bottom are dry to prevent mold and bad odors.

• Application of talc

✔️ Before prolonged storage, apply talcum powder to the fabric.

✔️ This prevents Hypalon surfaces from sticking together and helps to extend the life of your raft.

• Suitable storage

Store your RAPTOR in a dry, ventilated place, away from extreme temperature variations.

✔️ Avoid any proximity to heat sources (radiator, engine).

✔️ Protect it from rodents and insects.

• Pressure and inflation

Maintain the recommended pressure of 2.5 PSI .

✔️ Overinflation weakens seams and valves.

✔️ In warm weather, slightly reduce the pressure to compensate for air expansion.

Preventive maintenance

✔️ Regularly inspect valves, seams and bonding areas.

✔️ Immediately repair any micro-perforations using a suitable Hypalon kit.

To access the manual, click on the following link: Raptor range manual
