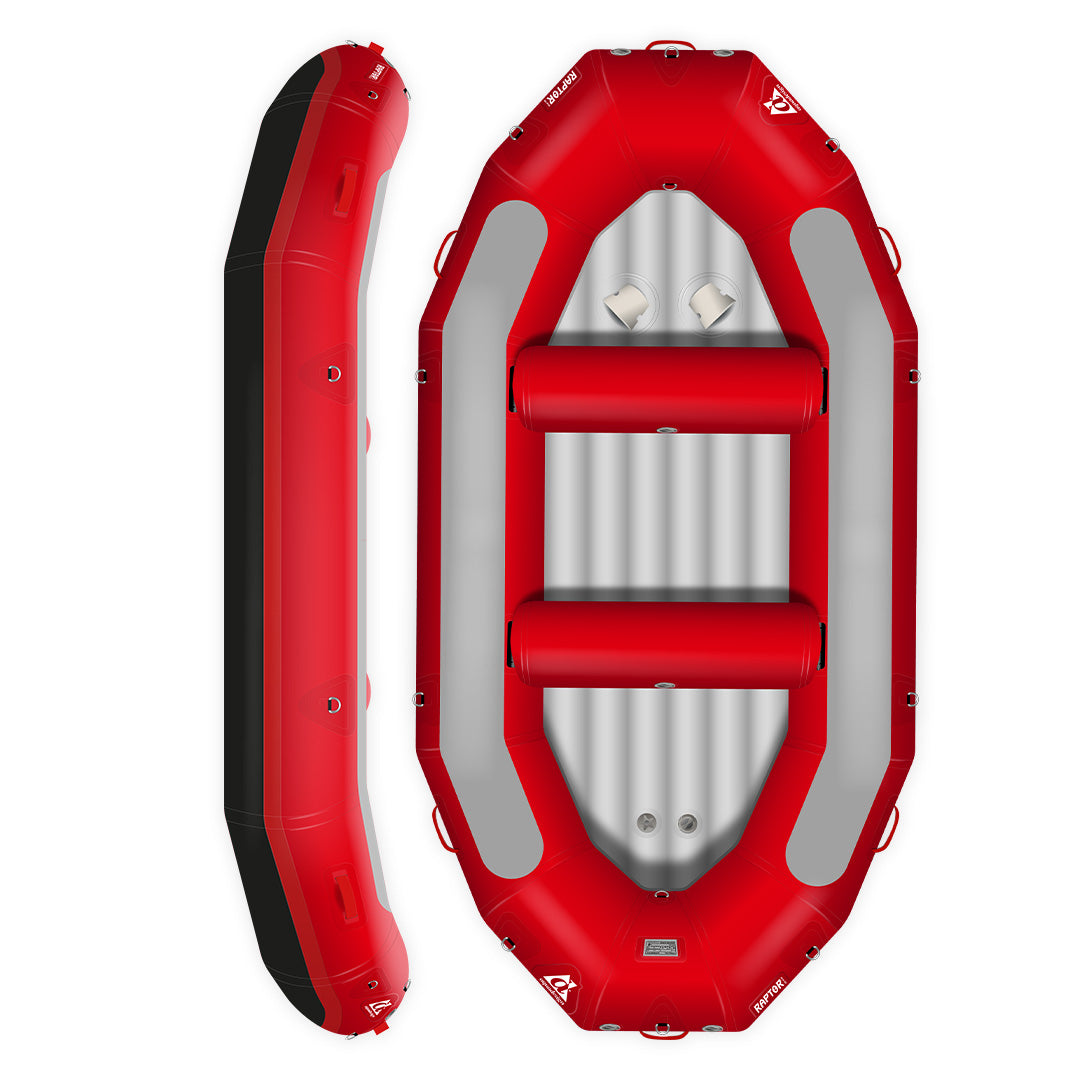

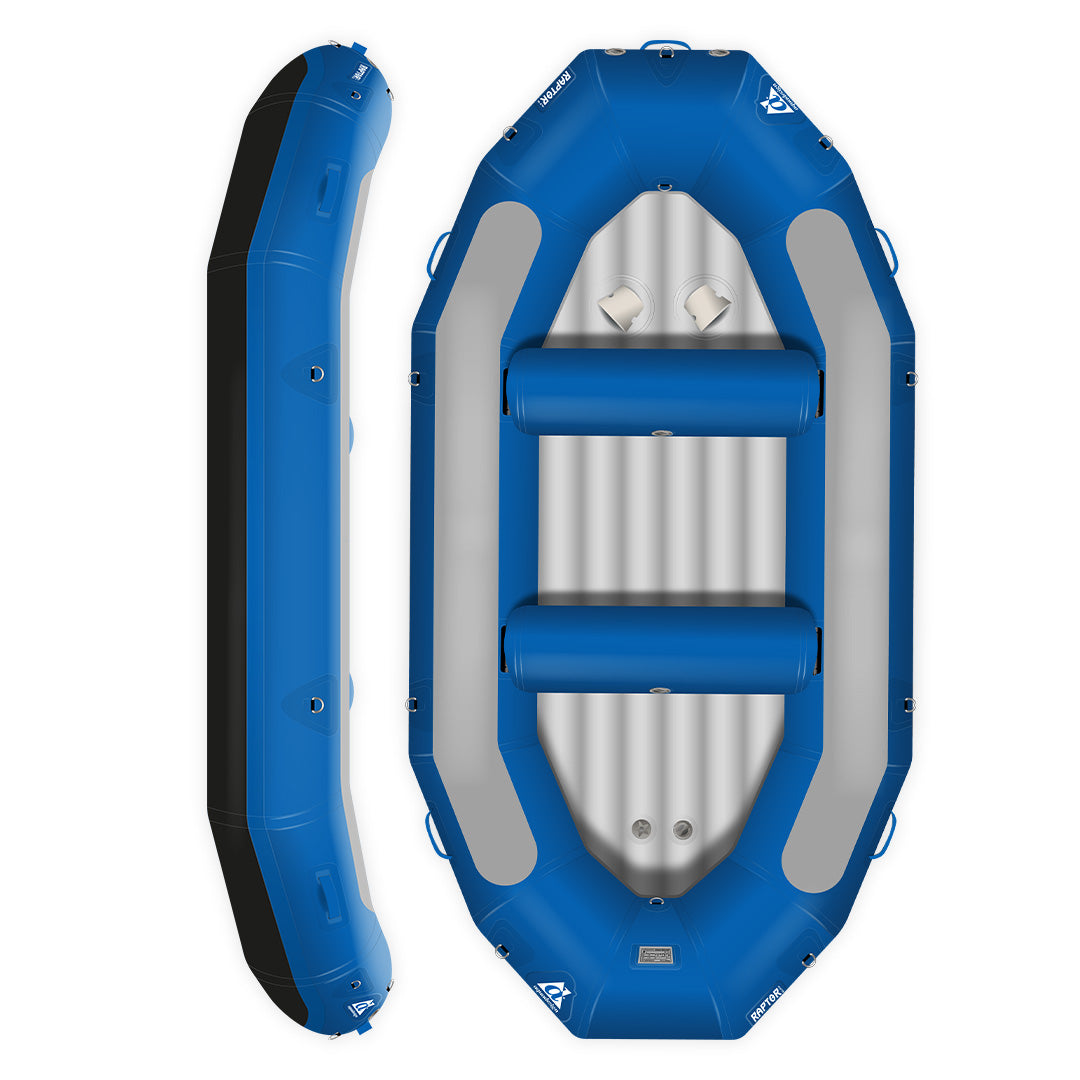

RAPTOR 340 - HYPALON RAFT FOR 6 PEOPLE

RA3224_R

Price
€4.099,99
€4.099,99

The Aquadesign RAPTOR 340 is a professional Hypalon Achiles® raft designed for extreme descents. With its 44 cm tubes , 173 cm width , and pronounced rocker , it offers a high, stable, and perfectly maneuverable ride. Its reinforced construction with abrasion-resistant Black Gum Sheet fabric ensures maximum durability against rocks and UV rays. For added safety, it features double-chamber tubes , a Leafield A6 overpressure valve , and an efficient self-bailing floor . Thanks to its removable thwarts with bar attachments , it adapts to the needs of each crew. Ideal for accommodating 6 people

Color
Available Out Of Stock
Free return
2-year warranty
RAPTOR 340 - HYPALON RAFT FOR 6 PEOPLE
  • Overview
  • Specifications
BENEFITS

KEY STRENGTHS

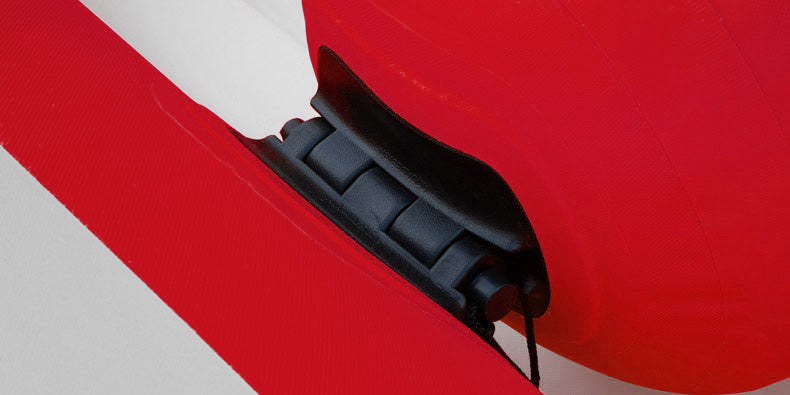

  • Zoom du système de fixation des thwarts amovible des rafts Aquadesign

    REMOVABLE THWART

    For maximum versatility, the thwarts are removable thanks to a system of bars.

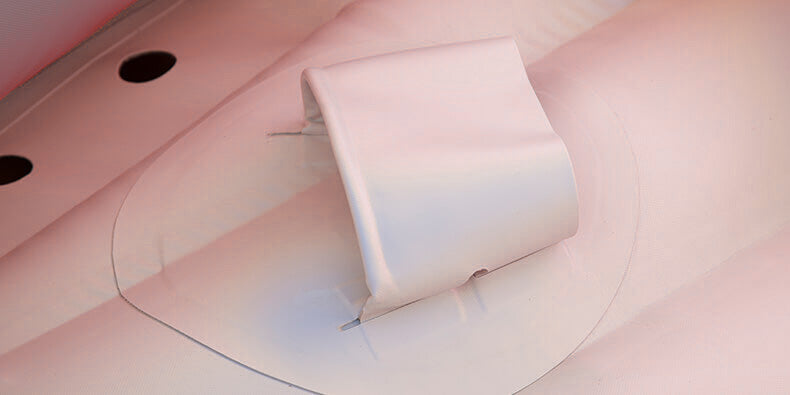

  • Zoom du foot cup des raft Aquadesign sur fond à ailettes

    FOOT CUP SHOES

    The Raptor range is equipped with two foot cups that fit at the front of the rafting boat.

  • CARRYING HANDLE

    Reinforced handles, doubled and sewn at the base to ensure easy, comfortable and durable transport.

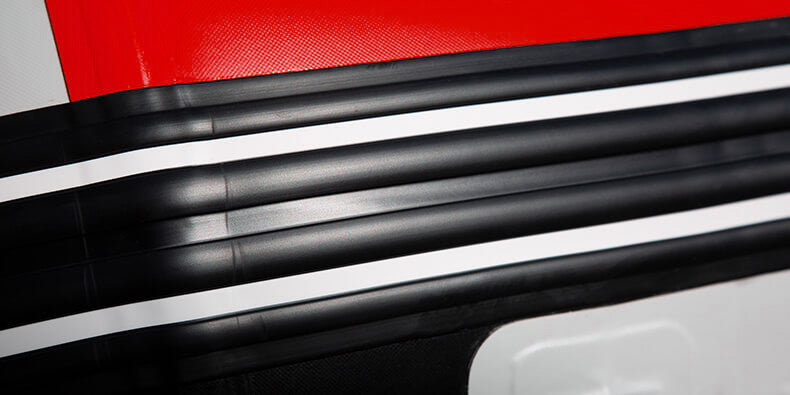

  • 10 CM RAGING BAND

    For optimal side protection and extended service life, the range is equipped with a rubbing strip.

  • RINGS D

    To ensure the safety of the entire crew, a lifeline is positioned around the perimeter of the raft.

  • Logo moulé du raft raptor 340

    XXXL LIFESPAN

    The RAPTOR range of Hypalon rafts offers a lifespan of up to 15 years, provided they are properly maintained and stored.

dimensions, weight and specs

Technical specifications

Capacity
6 Personnes
Length
340 cm / 11'
Width
173 cm / 5'6"
Inner width
85 cm / 33"
Tube diameter
44 cm / 17"
Thwarts
2 Thwarts amovibles
Thwart diameter
30 cm / 11"
Number of air chambers
4 + 2 + 1
Safety valve
1 Leafield – A6
Self-bailing system
Trous auto videur
D-rings
12
Handles
6
Maximum Load
<950 KG / <2094 Lbs
Dessin de la decoupe d'un raft - construction et composant du raptor
RAPTOR RANGE

REINFORCED CONSTRUCTION

  1. Hypalon Achiles® 1100 Dtex fabric tube
  2. Non-slip seat support made of Hypalon Achiles® 1100 Dtex fabric
  3. Upper part of the finned bottom made of Hypalon Achiles® 1100 Dtex fabric
  4. Lower part of the finned bottom made of Hypalon Achiles® 1680 Dtex fabric
  5. 10 cm Chafing Strip
  6. Lower reinforcement of the tubes in Black Gum Sheet
DESCRIPTION, MATERIALS & ADVICE

LEARN MORE

Designed for the most demanding rivers, the RAPTOR 340 Aquadesign raft is a concentrated blend of robustness and performance. Made from ultra-resistant Hypalon Achiles® fabric, it combines safety, comfort, and maneuverability to accommodate up to 6 people. With its generous 173 cm width, 44 cm tubes, and impressive rocker, it offers a high, stable ride perfectly suited to the most intense whitewater.

• Versatility and performance

The RAPTOR 340 stands out thanks to its innovative design, which enhances both safety and the paddling experience. Its double-chamber tubes provide twice the safety of a conventional raft, while its self-bailing floor ensures efficient water drainage. Its high profile allows it to tackle rapids with exceptional maneuverability and increased visibility, offering both the guide and crew an optimal experience.

• Reinforced construction

Made from 1100 DTEX Hypalon Achiles® for the tubes and upper bottom section, and 1680 DTEX Hypalon Achiles® for the lower section, the RAPTOR 340 offers maximum resistance to abrasion, UV rays, and hydrocarbons. A Black Gum Sheet reinforcement under the tubes effectively protects against wear from rocks and friction. Its Hypalon carrying handles and reinforced D-rings with a lifeline complete a piece of equipment designed to last, even in the most extreme conditions.

• Comfort and safety

With its removable thwarts secured by clips, the RAPTOR 340 easily adapts to different crews and configurations. It features foot cups at the front, anti-slip reinforcement around the perimeter, and a Leafield Marine A6 overpressure valve, guaranteeing comfort, stability, and safety in all conditions.

Hypalon Achiles® 1100 Dtex fabric tube, upper reinforcement (seat) in Hypalon Achiles® 1100 Dtex fabric, finned base in Hypalon Achiles® 1100 Dtex and 1680 Dtex fabric, Black Gum sheet, 10cm rubbing strip

A well-maintained RAPTOR raft made of Hypalon will provide you with many years of safe and intense adventures. To preserve its performance and longevity, adopt these best practices:

• Rinse after each outing

After each use, rinse your RAPTOR thoroughly with clean water.

✔️ Remove sand, mud and debris to prevent premature wear of the fabric.

✔️ Use a soft sponge to avoid damaging the surface of the Hypalon.

• Dry completely before storing

✔️ Never store your raft while it's wet.

✔️ Let it dry completely in the shade: Hypalon is quite resistant to UV rays, but prolonged drying in direct sunlight is still not recommended.

✔️ Check that all chambers and the bottom are dry to prevent mold and bad odors.

• Application of talc

✔️ Before prolonged storage, apply talcum powder to the fabric.

✔️ This prevents Hypalon surfaces from sticking together and helps to extend the life of your raft.

• Suitable storage

Store your RAPTOR in a dry, ventilated place, away from extreme temperature variations.

✔️ Avoid any proximity to heat sources (radiator, engine).

✔️ Protect it from rodents and insects.

• Pressure and inflation

Maintain the recommended pressure of 2.5 PSI .

✔️ Overinflation weakens seams and valves.

✔️ In warm weather, slightly reduce the pressure to compensate for air expansion.

Preventive maintenance

✔️ Regularly inspect valves, seams and bonding areas.

✔️ Immediately repair any micro-perforations using a suitable Hypalon kit.

To access the manual, click on the following link: Raptor range manual
