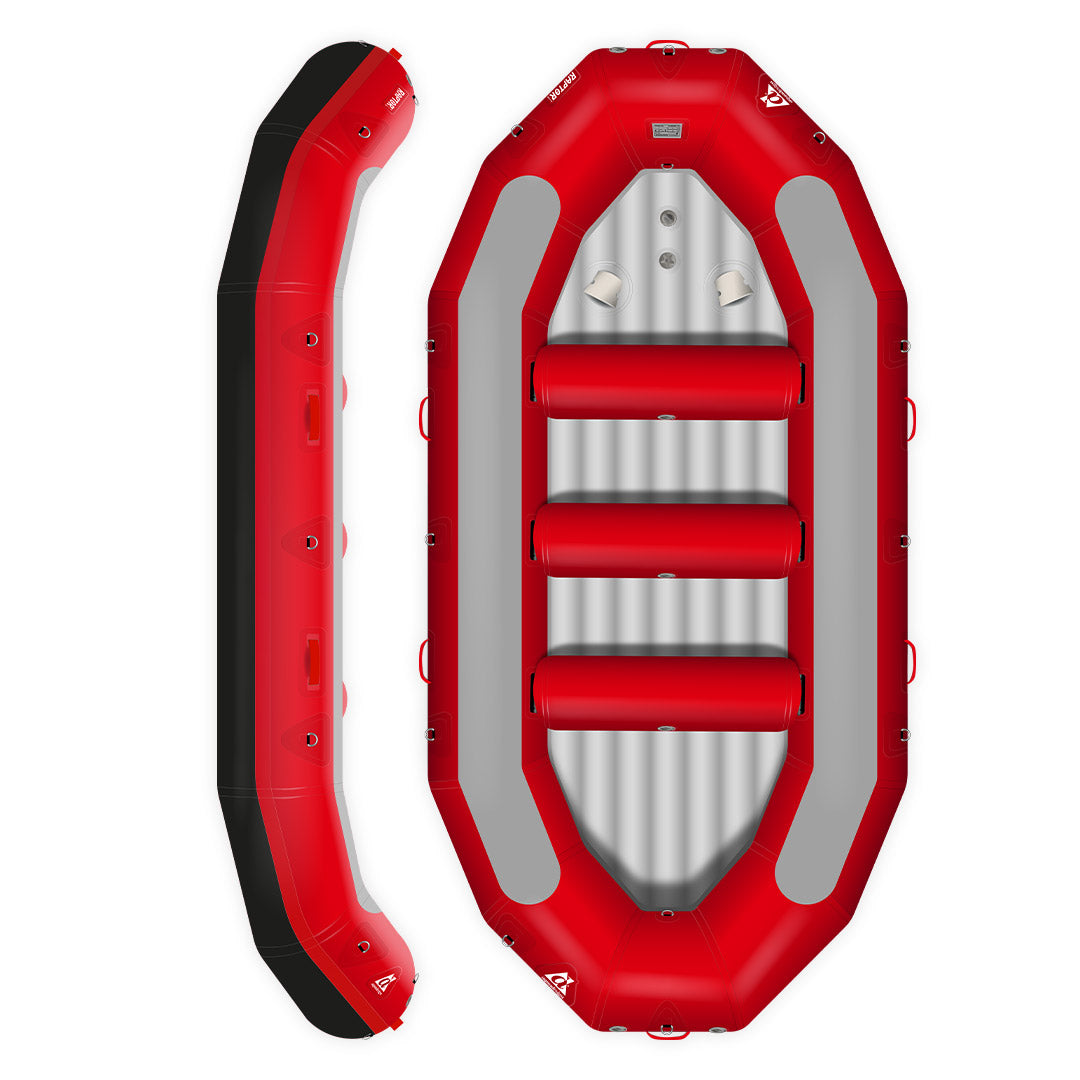

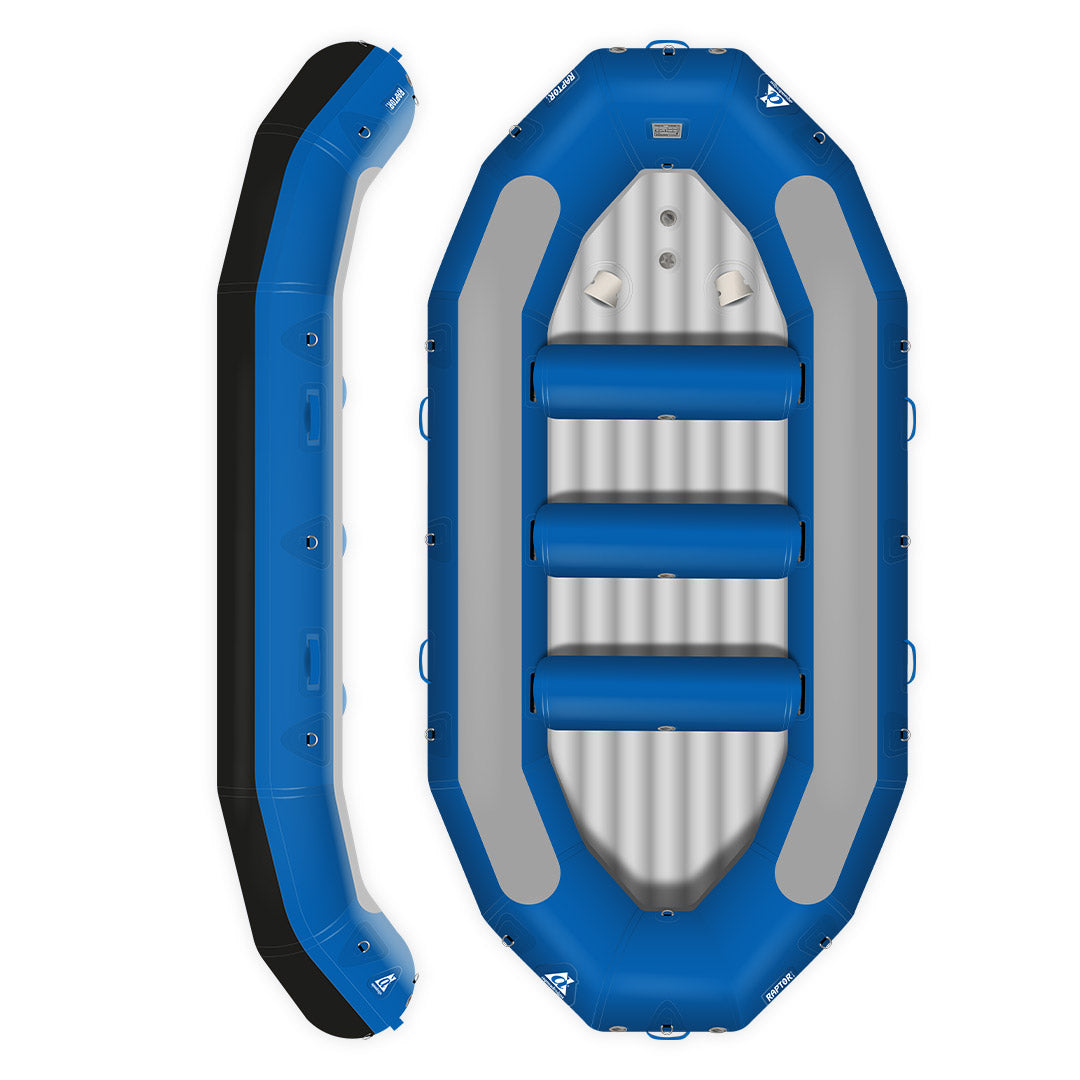

RAPTOR 410 - HYPALON RAFT FOR 9 PEOPLE

RA3228_R

Price
€5.427,99
€5.427,99

The Aquadesign RAPTOR 410 is a professional raft made of Achiles® Hypalon, designed to accommodate up to 9 people . Its massive 50cm tubes , 200cm width , and pronounced rocker ensure stable and maneuverable handling, even in the most challenging rapids. Thanks to its reinforced construction with abrasion-resistant Black Gum Sheet fabric , it withstands the most extreme impacts and friction. For added safety, it features double-chamber tubes , a Leafield A6 overpressure valve , and a high-performance self-bailing floor . With its three removable thwarts secured by bar clips , it adapts to all configurations and becomes a reliable partner for guides and expeditions.

Color
Available Out Of Stock
Free return
2-year warranty
RAPTOR 410 - HYPALON RAFT FOR 9 PEOPLE
  • Overview
  • Specifications
BENEFITS

KEY STRENGTHS

  • Zoom du système de fixation des thwarts amovible des rafts Aquadesign

    REMOVABLE THWART

    For maximum versatility, the thwarts are removable thanks to a system of bars.

  • Zoom du foot cup des raft Aquadesign sur fond à ailettes

    FOOT CUP SHOES

    The Raptor range is equipped with two foot cups that fit at the front of the rafting boat.

  • CARRYING HANDLE

    Reinforced handles, doubled and sewn at the base to ensure easy, comfortable and durable transport.

  • 10 CM RAGING BAND

    For optimal side protection and extended service life, the range is equipped with a rubbing strip.

  • RINGS D

    To ensure the safety of the entire crew, a lifeline is positioned around the perimeter of the raft.

  • Logo moulé du raft raptor 340

    XXXL LIFESPAN

    The RAPTOR range of Hypalon rafts offers a lifespan of up to 15 years, provided they are properly maintained and stored.

dimensions, weight and specs

Technical specifications

Capacity
9 Personnes
Length
410 cm / 13'
Width
200 cm / 6'5
Inner width
100 cm / 39"
Tube diameter
50 cm / 19"
Thwarts
3 Thwarts amovibles
Thwart diameter
30 cm / 12"
Number of air chambers
4 + 3 + 1
Safety valve
1 Leafield – A6
Self-bailing system
Trous auto videur
D-rings
16
Handles
6
Weight
61 kg / 164 Lbs
Maximum Load
<1100 kg / <2425 Lbs
Dessin de la decoupe d'un raft - construction et composant du raptor
RAPTOR RANGE

REINFORCED CONSTRUCTION

  1. Hypalon Achiles® 1100 Dtex fabric tube
  2. Non-slip seat support made of Hypalon Achiles® 1100 Dtex fabric
  3. Upper part of the finned bottom made of Hypalon Achiles® 1100 Dtex fabric
  4. Lower part of the finned bottom made of Hypalon Achiles® 1680 Dtex fabric
  5. 10 cm Chafing Strip
  6. Lower reinforcement of the tubes in Black Gum Sheet
DESCRIPTION, MATERIALS & ADVICE

LEARN MORE

Designed for whitewater expeditions, the RAPTOR 410 Aquadesign raft combines volume, safety, and robustness. Constructed from ultra-resistant Hypalon Achiles®, it accommodates up to 9 people and guarantees exceptional durability against abrasion, UV rays, and hydrocarbons. With its 50 cm diameter tubes, 200 cm width, and impressive rocker, it offers a high, stable, and maneuverable ride, even in the most demanding conditions.

• Performance and comfort

Thanks to its high-buoyancy design, the RAPTOR 410 offers both the guide and crew improved visibility and optimized control in rapids. Its self-bailing, perforated bottom ensures rapid water drainage for maximum peace of mind. The three removable thwarts with bar attachments allow for easy configuration adjustments to suit different uses, whether for sport trips, professional expeditions, or commercial runs.

• Reinforced construction

The RAPTOR 410 is built to last: Hypalon Achiles® 1100 DTEX for the tubes and top of the bottom, Hypalon Achiles® 1680 DTEX for the bottom, complemented by a Black Gum Sheet reinforcement under the tubes to resist rocks and abrasion. Its 16 reinforced D-rings with lifeline, non-slip Hypalon coating, and snug foot cups enhance comfort and safety.

• Maximum security

With its double-chamber tubes, this raft offers twice the safety of a standard model. Its Leafield Marine A6 overpressure valve protects against excess pressure, while its six reinforced handles make carrying and launching easier. Capable of carrying up to nine people (1100 kg load capacity), the RAPTOR 410 is the ideal companion for guides and enthusiasts looking for a reliable and versatile raft.

Hypalon Achiles® 1100 Dtex fabric tube, upper reinforcement (seat) in Hypalon Achiles® 1100 Dtex fabric, finned base in Hypalon Achiles® 1100 Dtex and 1680 Dtex fabric, Black Gum sheet, 10cm rubbing strip

A well-maintained RAPTOR raft made of Hypalon will provide you with many years of safe and intense adventures. To preserve its performance and longevity, adopt these best practices:

• Rinse after each outing

After each use, rinse your RAPTOR thoroughly with clean water.

✔️ Remove sand, mud and debris to prevent premature wear of the fabric.

✔️ Use a soft sponge to avoid damaging the surface of the Hypalon.

• Dry completely before storing

✔️ Never store your raft while it's wet.

✔️ Let it dry completely in the shade: Hypalon is quite resistant to UV rays, but prolonged drying in direct sunlight is still not recommended.

✔️ Check that all chambers and the bottom are dry to prevent mold and bad odors.

• Application of talc

✔️ Before prolonged storage, apply talcum powder to the fabric.

✔️ This prevents Hypalon surfaces from sticking together and helps to extend the life of your raft.

• Suitable storage

Store your RAPTOR in a dry, ventilated place, away from extreme temperature variations.

✔️ Avoid any proximity to heat sources (radiator, engine).

✔️ Protect it from rodents and insects.

• Pressure and inflation

Maintain the recommended pressure of 2.5 PSI .

✔️ Overinflation weakens seams and valves.

✔️ In warm weather, slightly reduce the pressure to compensate for air expansion.

Preventive maintenance

✔️ Regularly inspect valves, seams and bonding areas.

✔️ Immediately repair any micro-perforations using a suitable Hypalon kit.

To access the manual, click on the following link: Raptor range manual
