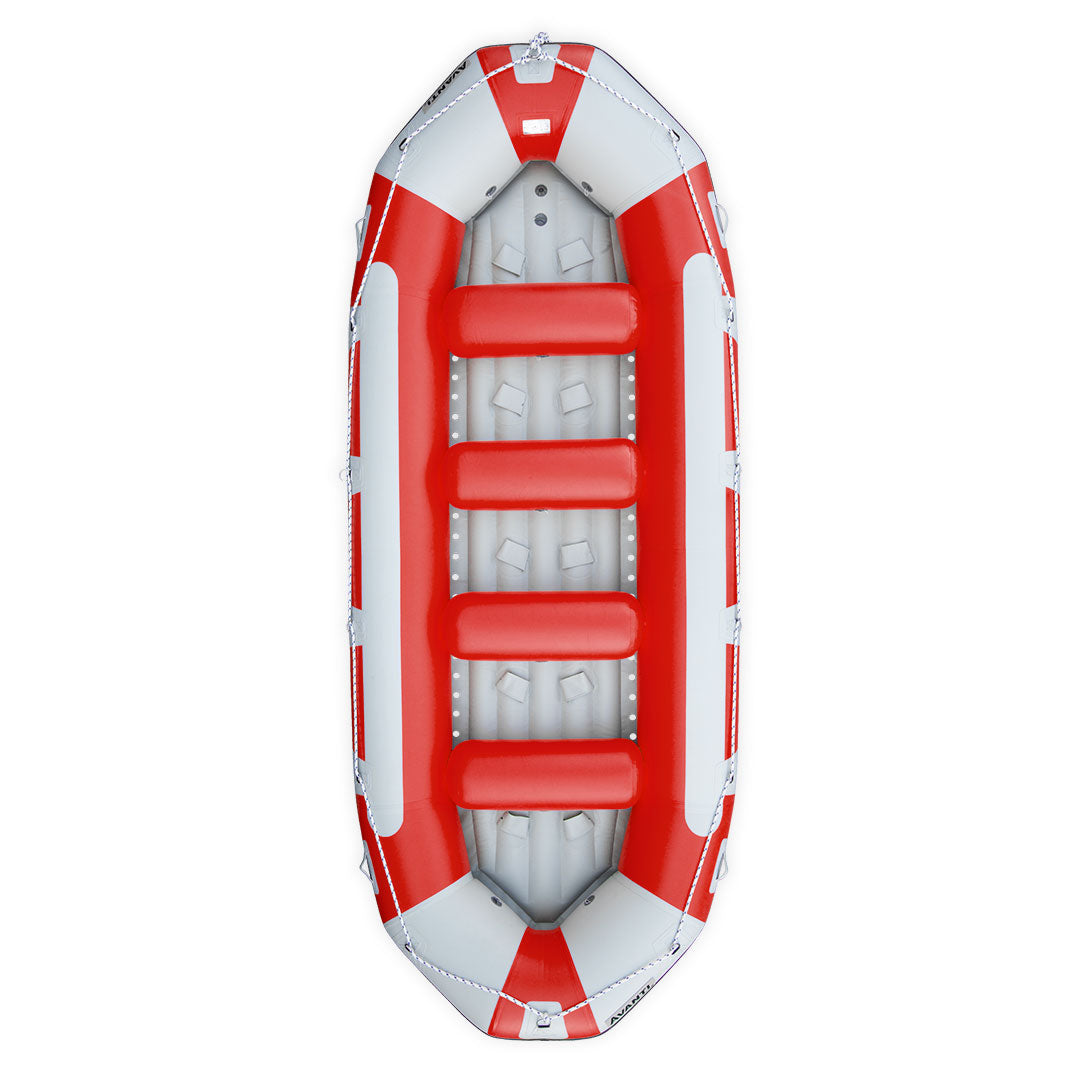

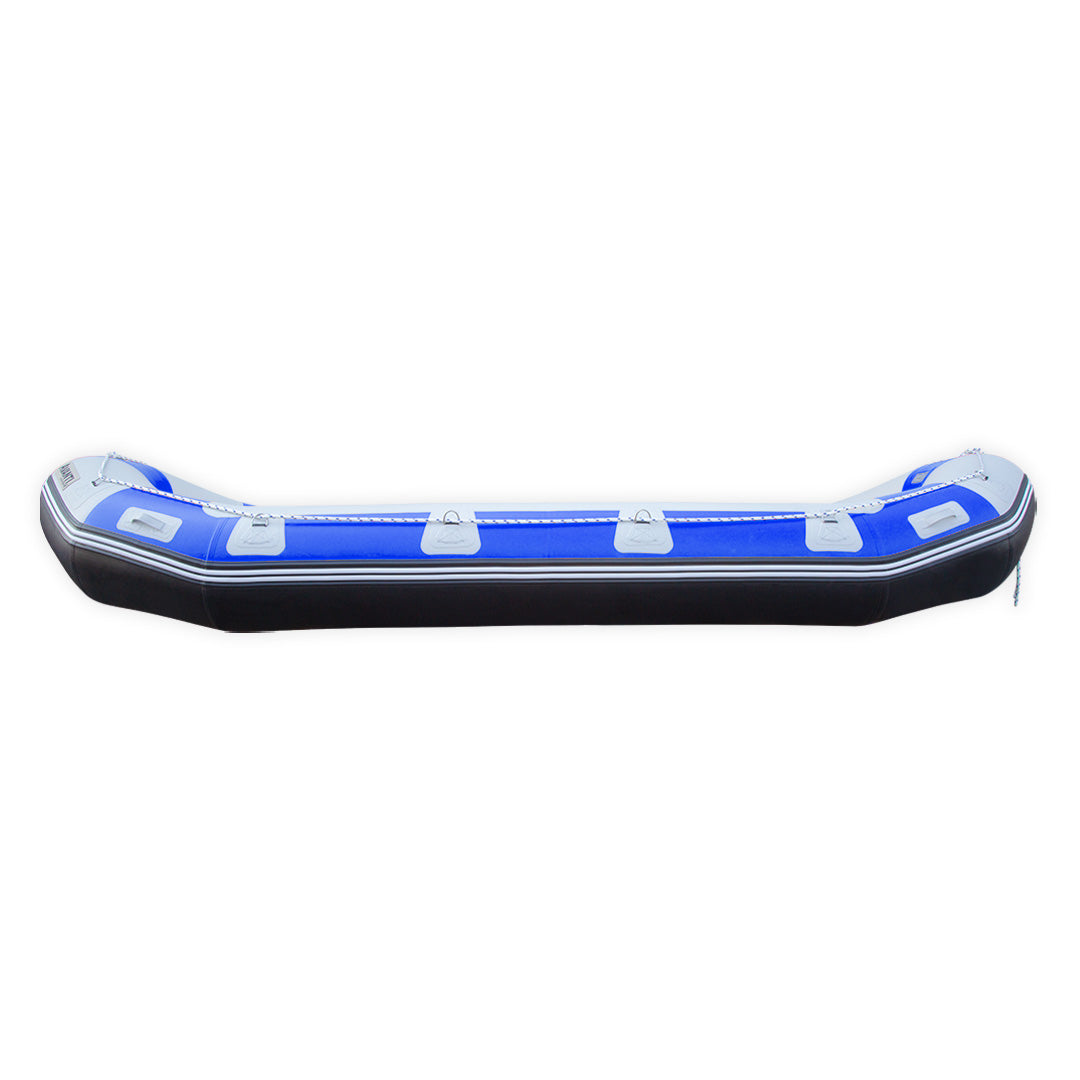

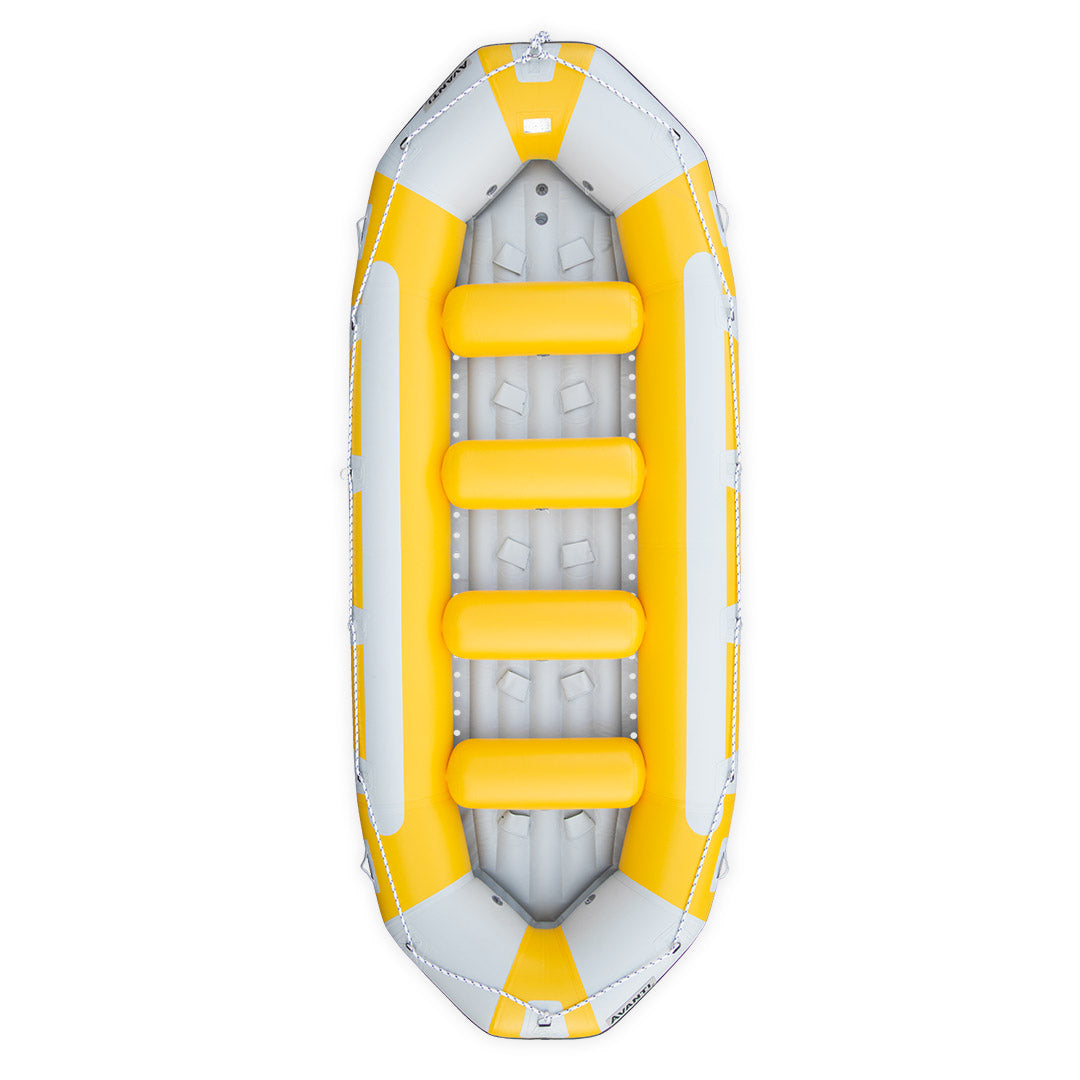

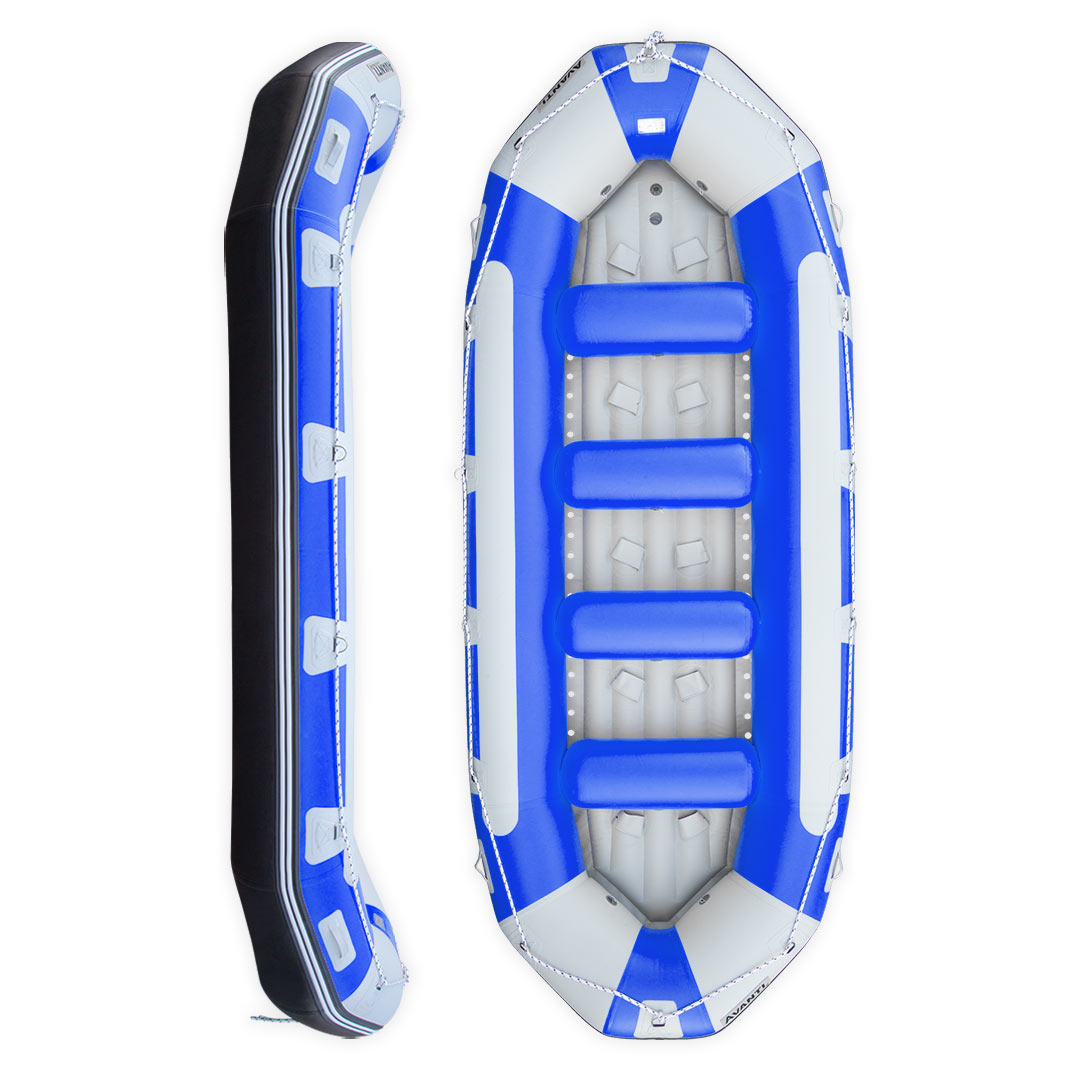

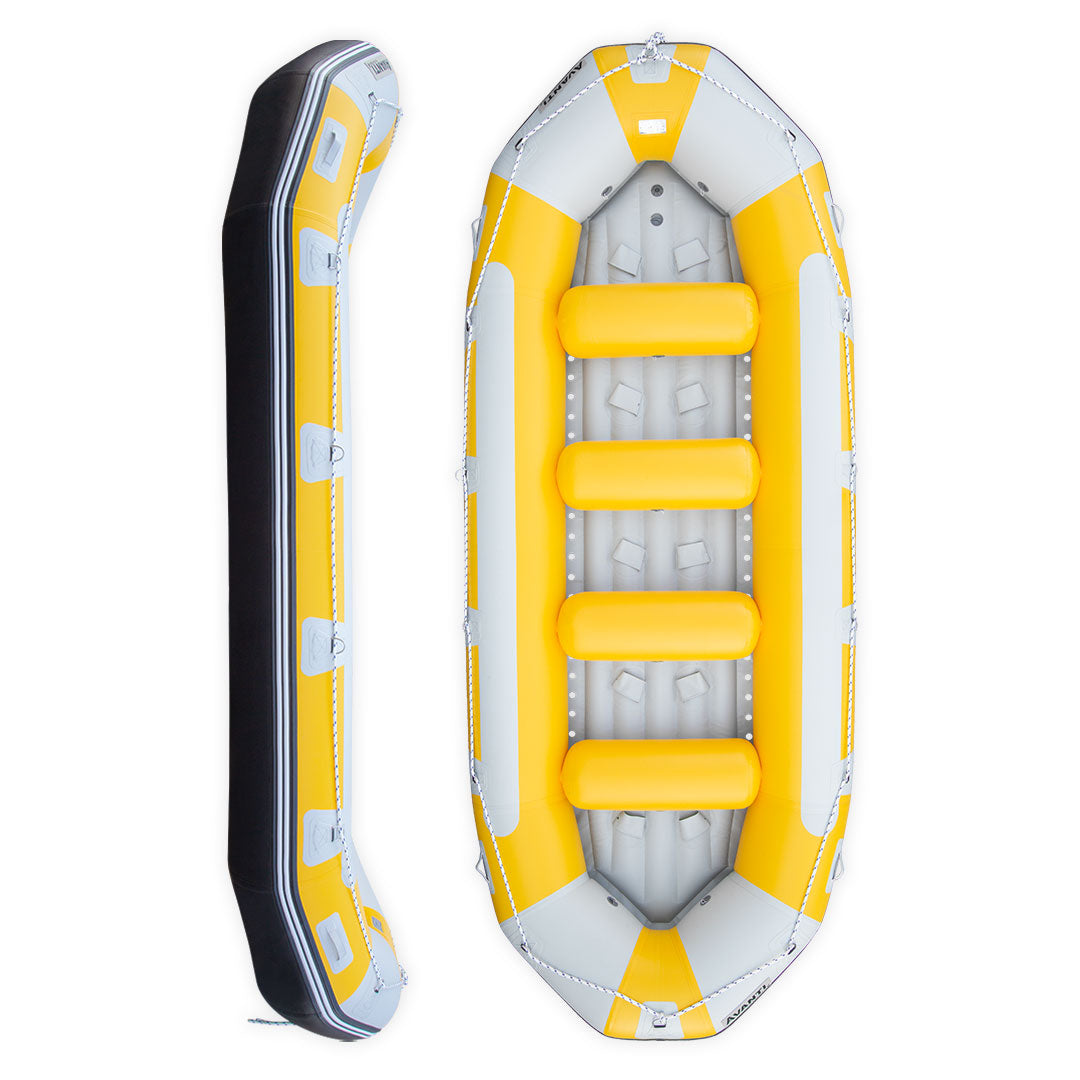

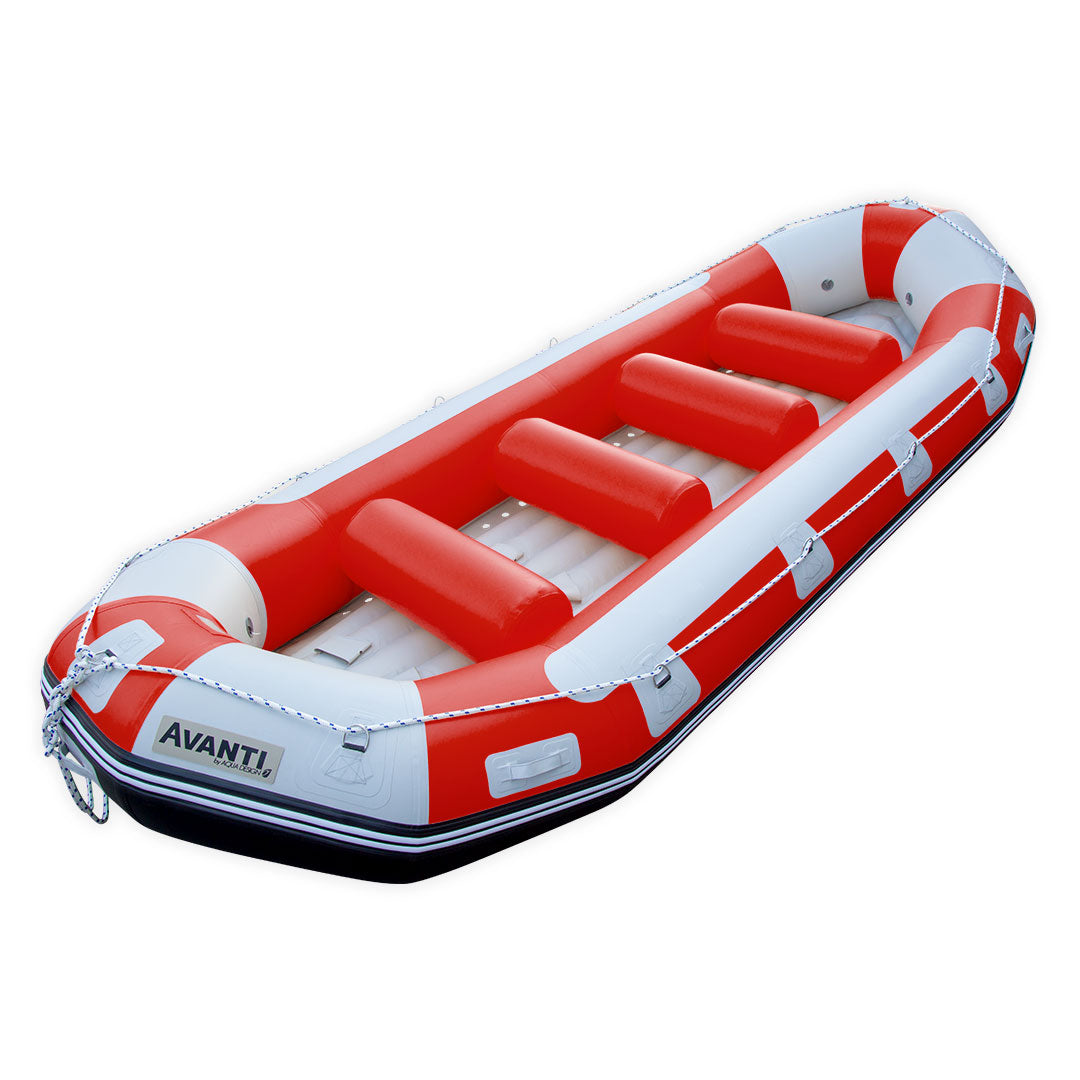

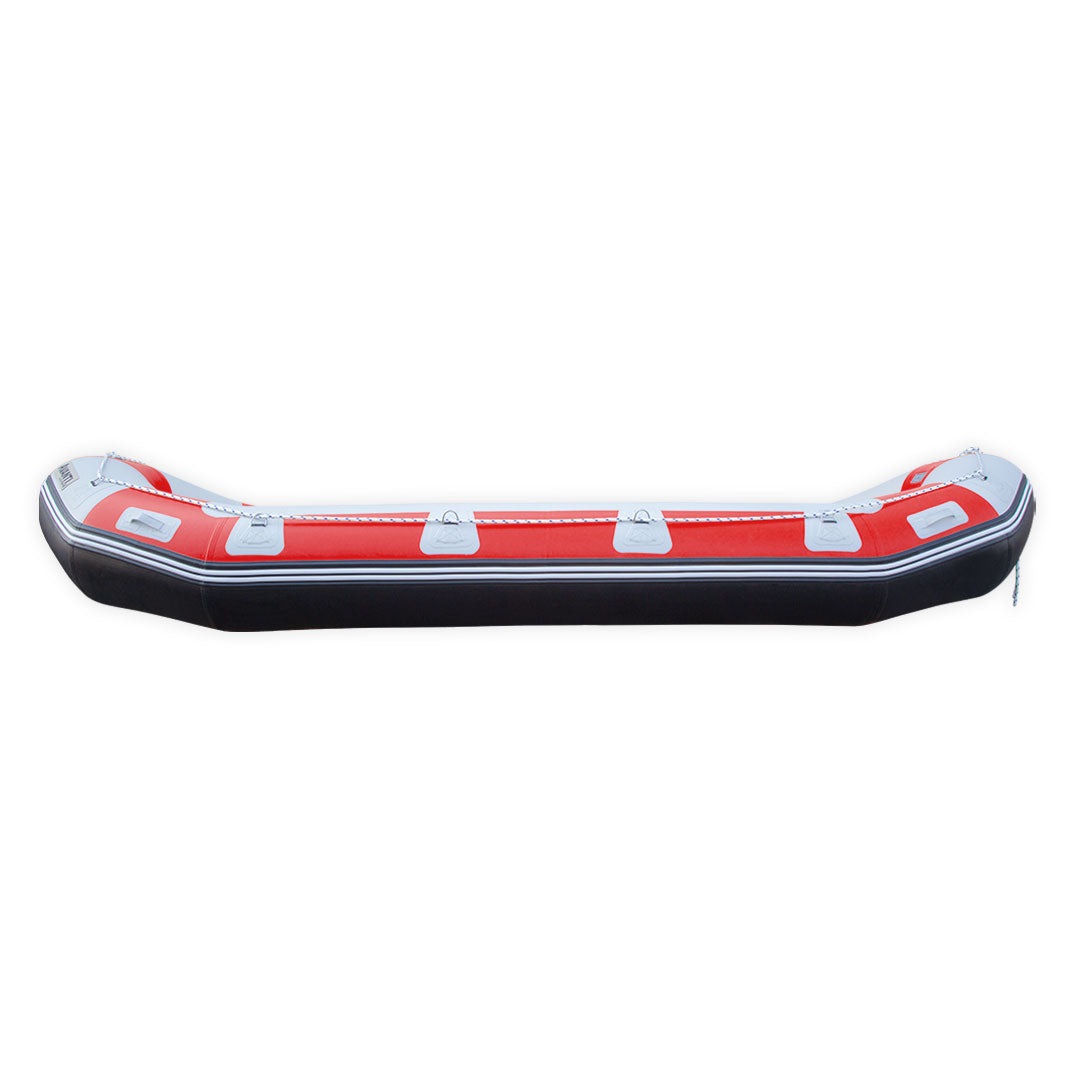

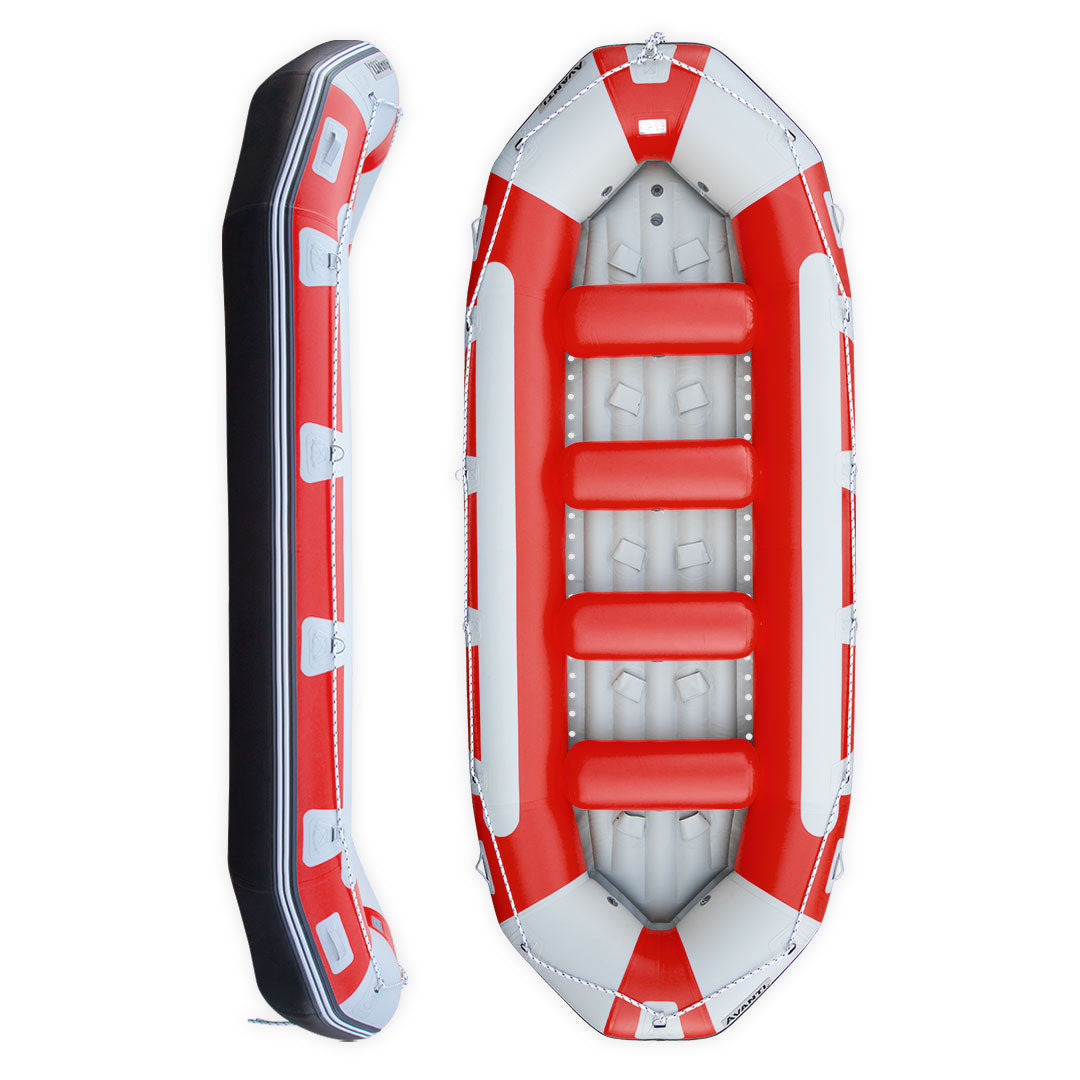

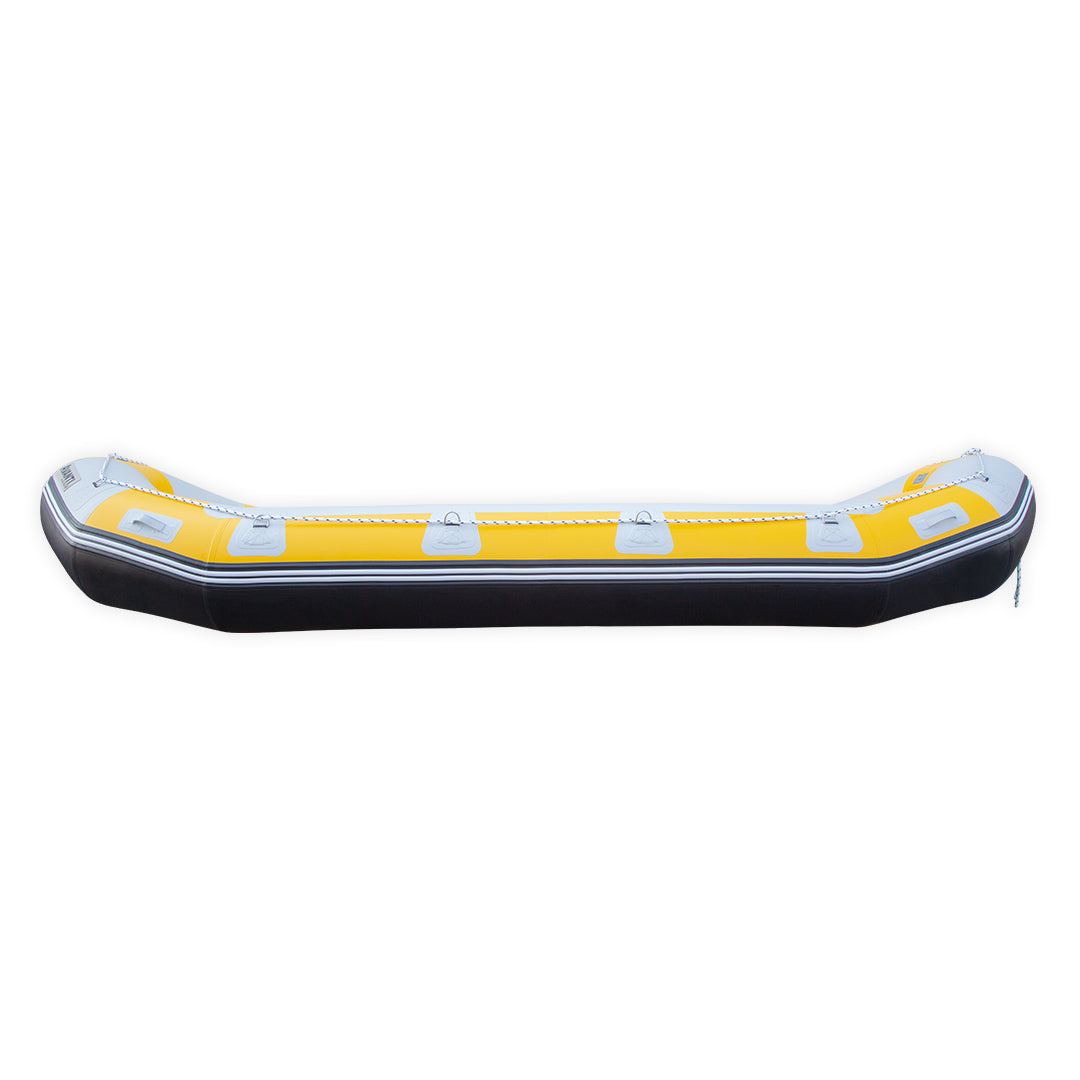

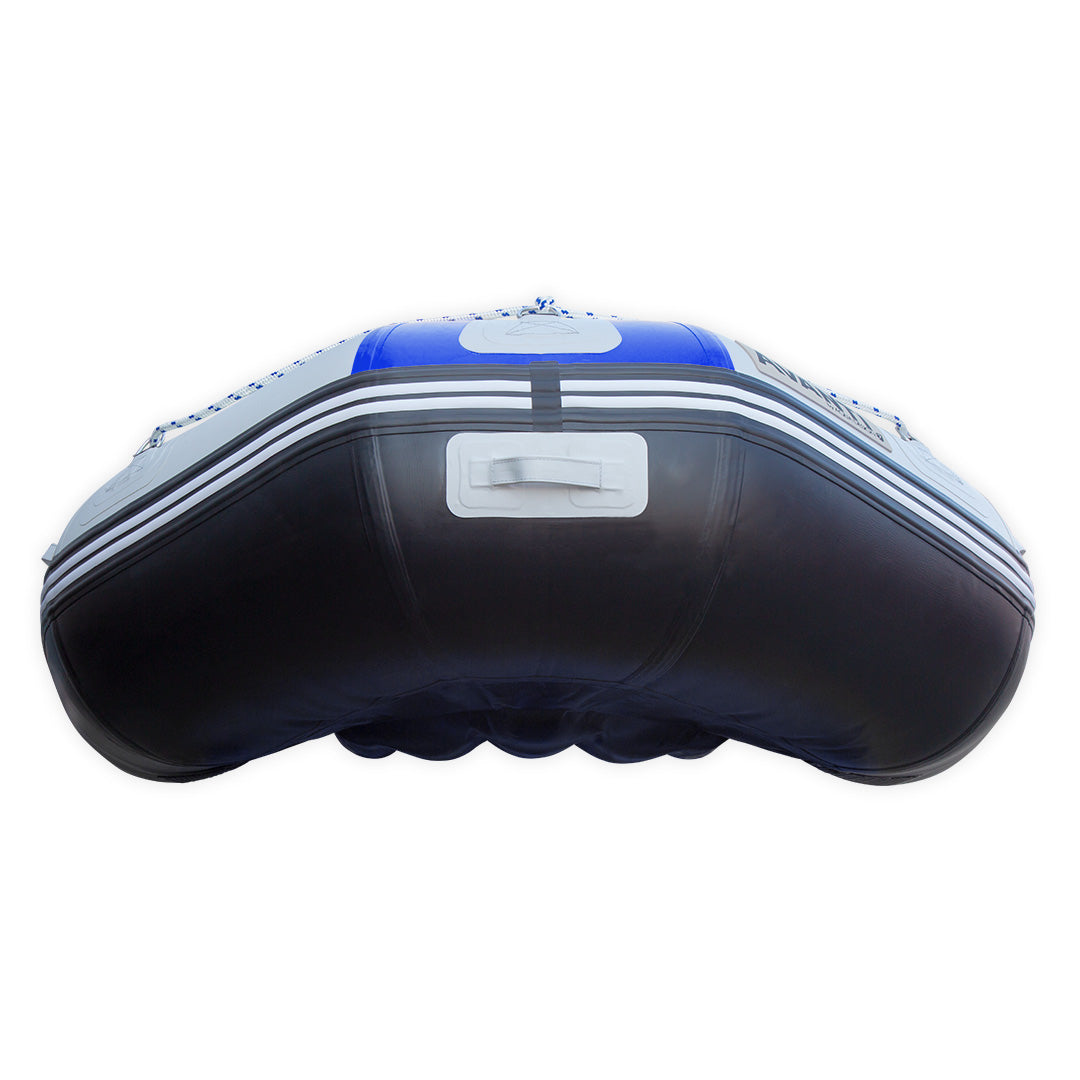

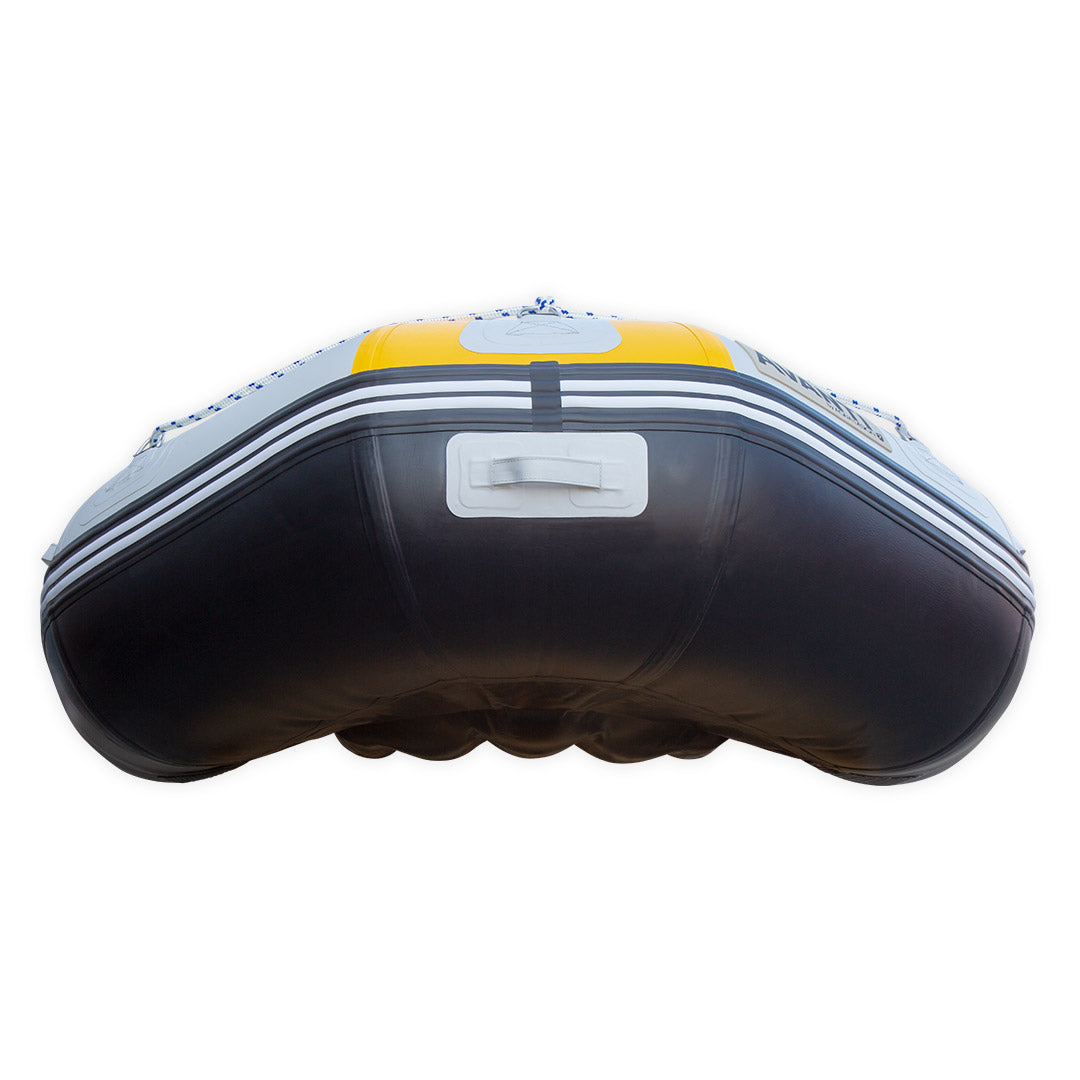

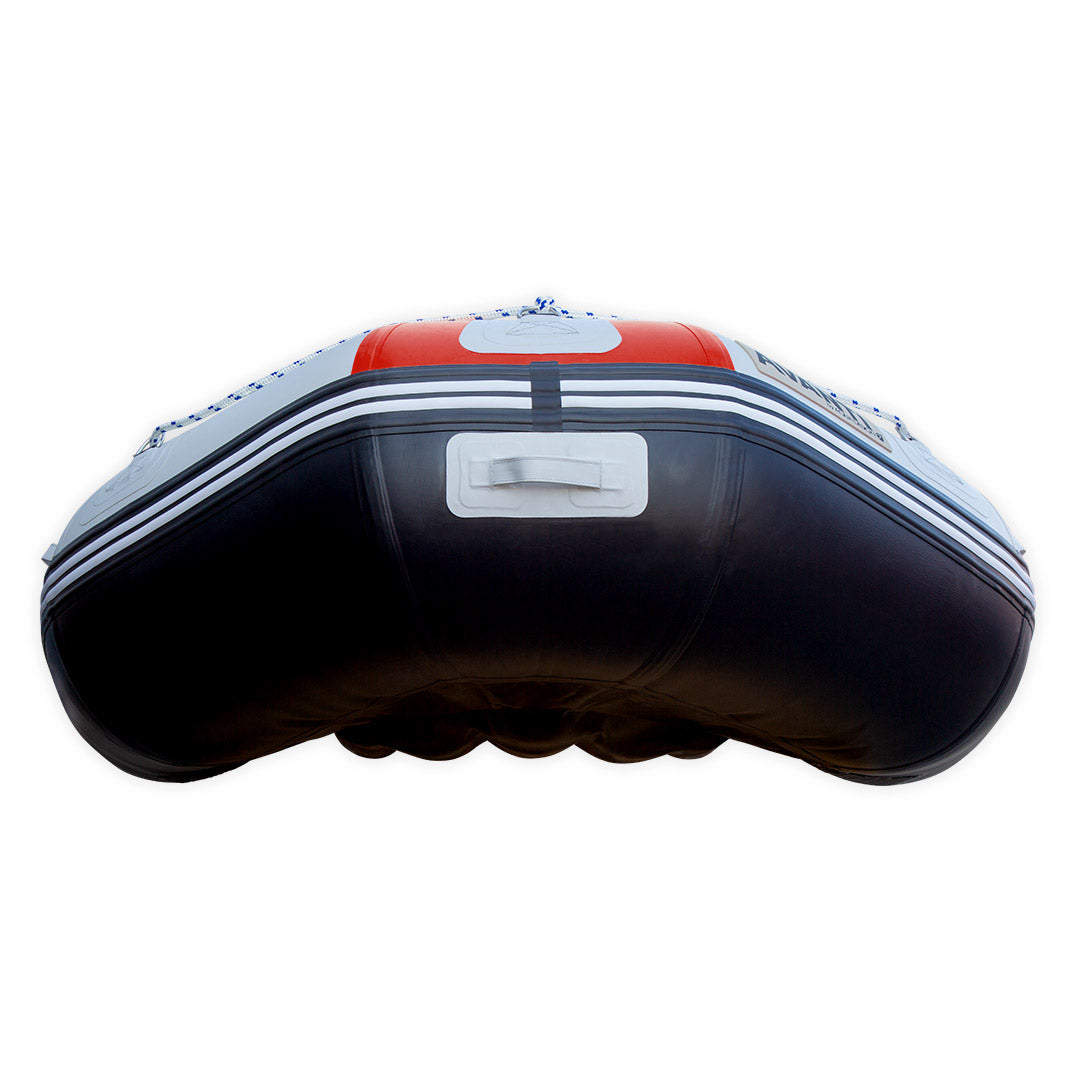

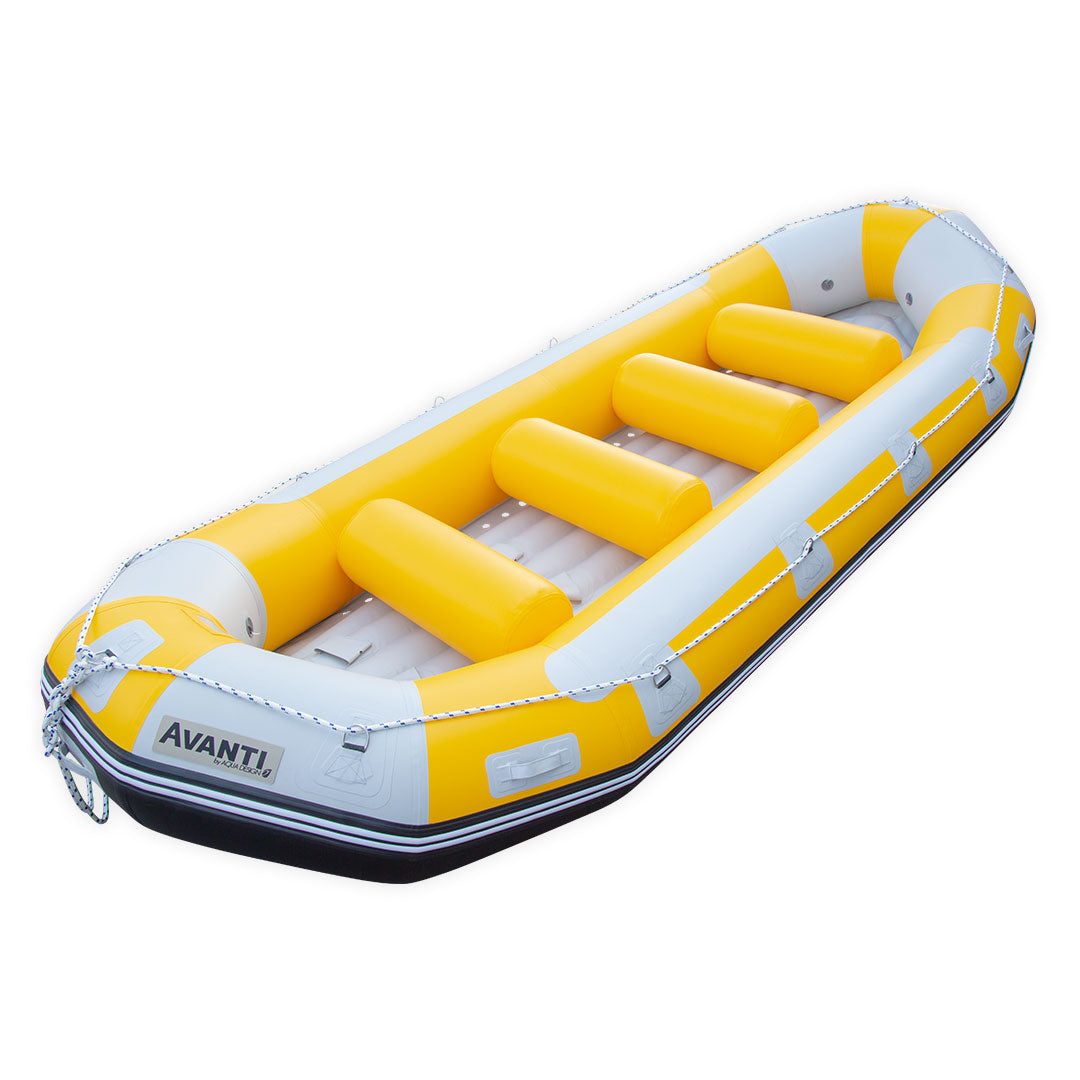

AVANTI 470 - RAFT FOR 11 PEOPLE

RA3257_R

Price
€3.098,99
€3.098,99

Designed to carry 11 people , the Avanti 470 combines premium PVC construction—twice as cheap as a traditional raft—with a more flexible fabric for increased flex and maneuverability. Measuring 470 cm long and 198 cm wide (98 cm interior), it features four removable 32.5 cm diameter thwarts , a finned floor with self-bailing holes, 14 D-rings, and 6 grab handles. Safety is ensured by a Leafield A6 overpressure valve and a 4+4+1 air chamber configuration.

Color
Available In Stock
Free return
2-year warranty
AVANTI 470 - RAFT FOR 11 PEOPLE
  • Overview
  • Specifications
BENEFITS

KEY STRENGTHS

  • REMOVABLE THWART

    For maximum versatility, the thwarts are removable thanks to a system of bars.

  • FOOT CUP SHOES

    To ensure comfort, support and safety, the Avanti range is equipped with foot cups that fit snugly.

  • CARRYING HANDLE

    Reinforced handles, doubled and sewn at the base to ensure easy, comfortable and durable transport.

  • 10 CM RAGING BAND

    For optimal side protection and extended service life, the range is equipped with a rubbing strip.

  • RINGS D

    To ensure the safety of the entire crew, a lifeline is positioned around the perimeter of the raft.

  • Number 1 in Europe

    Thanks to the expertise accumulated by Aquadesign since 1988, the AVANTI range of PVC rafts is number 1 in Europe.

dimensions, weight and specs

Technical specifications

Capacity
11 Personnes
Length
470 cm / 15'5"
Width
198 cm / 78"
Inner width
98 cm / 38.5"
Longueur maximale du cadre plat
245 cm / 96"
Tube diameter
50 cm / 20"
Thwarts
4 Thwarts Amovibles
Thwart diameter
32.5 cm / 12.8"
Rocker Avant
30 cm / 11.8" (Mesure sol/ base des tubes) - 81 cm / 32" (Mesure sol/ sommet des tubes)
Rocker Arrière
30 cm / 11.8" (Mesure sol/ base des tubes) - 81 cm / 32" (Mesure sol/ sommet des tubes)
Number of air chambers
4 + 4 + 1
Safety valve
1 Leafield – A6
Self-bailing system
Trous auto videur
D-rings
14
Handles
6
Weight
70,6 kg / 156 lbs
Maximum Load
<1150 kg / < 2535 lbs
AVANTI RANGE

REINFORCED CONSTRUCTION

  1. 1000 Dtex fabric tube
  2. Superior reinforcement of the tubes with 1100 Dtex fabric

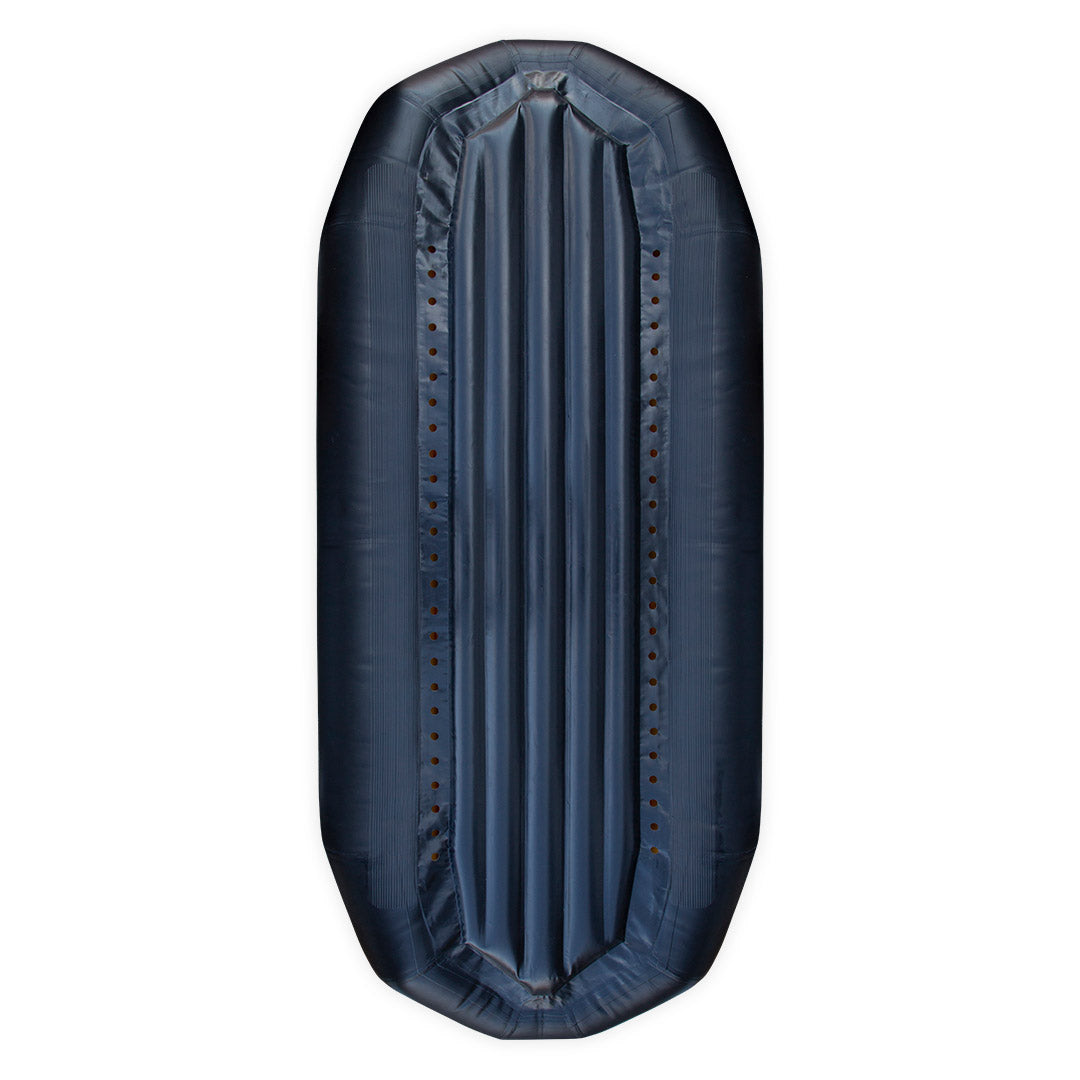

  3. Upper part of the finned bottom made of 1000 Dtex fabric
  4. Lower part of the finned bottom made of 2000 Dtex fabric
  5. Lower tube lining in abrasion-resistant fabric
  6. Lower tube reinforcement with a high-strength grooved band
DESCRIPTION, MATERIALS & ADVICE

LEARN MORE

The Avanti 470 Aquadesign raft is aimed at organizations looking for a spacious, versatile, and durable inflatable boat without compromising on operating costs. Its premium PVC construction—half the price of a traditional raft—and more flexible fabric provide the flex and mobility needed for maneuvering, while the pronounced rocker and finned floor allow it to adapt to all types of rivers.

Measuring 470 x 198 cm with an interior width of 98 cm, the Avanti 470 offers ample space for the crew and gear. The 50 cm diameter tubes provide reassuring stability; the four removable 32.5 cm diameter thwarts (a unique feature of this model in the range) allow for easy seat adjustment depending on the outing. Onboard, there are 14 D-rings for lifelines and tie-downs, 6 carrying handles, a self-bailing finned floor, and self-bailing drain holes for continuous water removal. The maximum length of the flat frame is 245 cm, convenient for rigging a frame boat.

For a clear understanding of its performance, Aquadesign specifies the rocker using two measurements, one for the bow and one for the stern: 30 cm (from the ground to the base of the tubes) and 81 cm (from the ground to the top of the tubes). For safety, the boat features a Leafield A6 overpressure valve and a 4+4+1 air chamber redundancy system. Despite its capacity, the boat remains maneuverable, weighing in at 70.6 kg and with a maximum load capacity of less than 1150 kg.

Durability relies on clear material choices: the fabric weight is approximately 1450 g/m² for the floor and 1100 g/m² for the tubes. The reinforcement pack covers all high-stress areas: 1000 DTEX PVC reinforcement on the upper tubes, a finned floor in 1000 DTEX (top) and 2000 DTEX (bottom), 1000 DTEX reinforcement under the tubes up to the rubbing strake, and a grooved band under the tubes for abrasion resistance. With its yellow, red, and blue colors, the Avanti 470 stands out as a European benchmark: lightweight, versatile, durable, and ready for intensive use.

Key points to remember
• Excellent value for money: premium PVC construction, half the price of a standard raft
• Versatility: pronounced rocker + finned bottom to adapt to all rivers
• Modularity: 4 removable thwarts Ø 32.5 cm, flat frame 245 cm
• Safety: Leafield A6, 4+4+1 inner tubes, continuous self-bailing
• Durability: 1000/2000 DTEX reinforcements, ribbed band and 1450/1100 g/m² fabric

1000 Dtex PVC fabric tube, 1100 Dtex PVC top reinforcement, 1000 and 2000 Dtex PVC fabric finned bottom, abrasion-resistant fabric, grooved band, 10cm rubbing strip

Weight/m2 of the tube fabric: 1100 g / 39 oz (This is the weight per square meter of the tube fabric; this value is an indicator of the fabric's strength.)

Weight/m2 of the background fabric: 1450 g / 51 oz (This is the weight per square meter of the background fabric; this value is an indication of the fabric's strength.)

A well-maintained AVANTI raft will provide you with years of safe adventures. To preserve its performance and durability, adopt these best practices.

  • Rinse after each outing

After each use, rinse your AVANTI thoroughly with clean water.

✔️ Remove sand, mud and debris to prevent premature wear of the PVC.

✔️ Use a soft sponge to avoid scratching the coating.

  • Dry completely before storing

✔️Never store your raft wet.

✔️ Let it dry completely in the shade, as prolonged exposure to the sun accelerates the aging of the fabric.

✔️ Check that all chambers and the bottom are completely dry to prevent mold and bad odors.

  • Suitable storage

Store your AVANTI in a dry, ventilated place, away from extreme temperature variations.

✔️ Avoid any proximity to heat sources (radiator, engine).

✔️ Protect it from rodents and insects.

  • Pressure and inflation

Maintain the recommended pressure of 2.5 PSI .

✔️ Overinflation weakens seams and valves.

✔️ In warm weather, slightly reduce the pressure to compensate for air expansion.

  • Preventive maintenance

✔️ Regularly inspect valves, seams and bonding areas.

✔️ Repair any micro-perforations immediately using a suitable kit.

To access the manual, click on the following link: Avanti range manual
