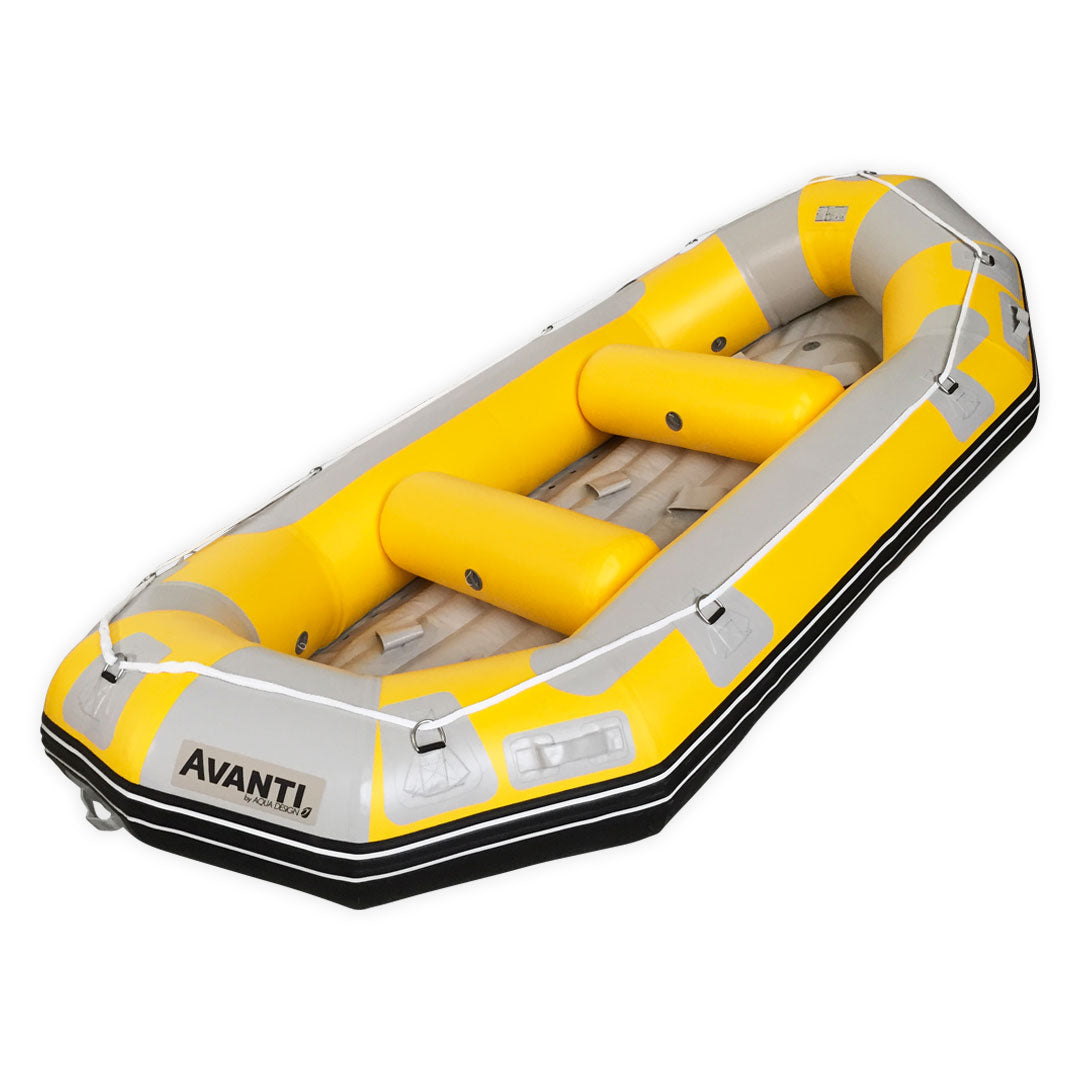

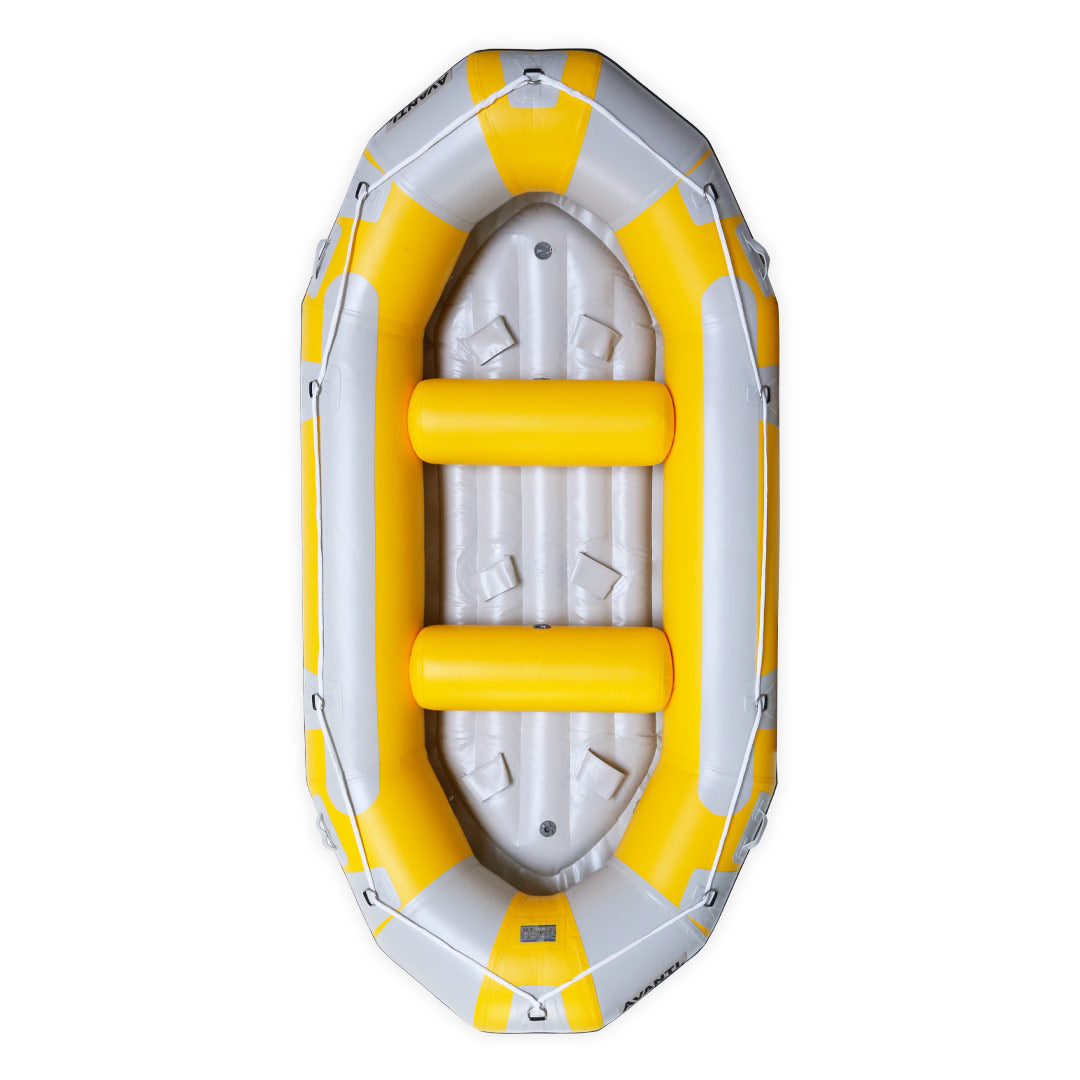

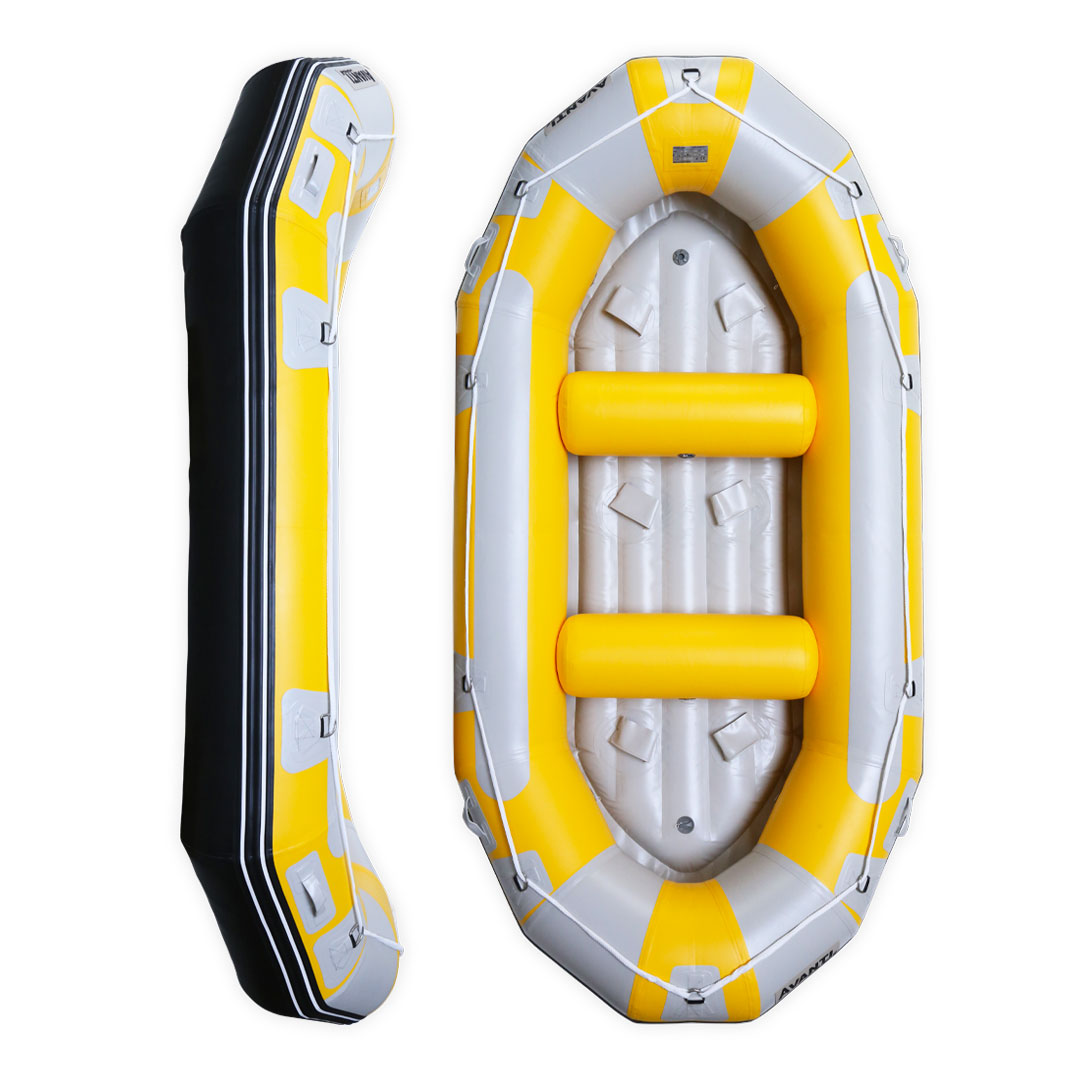

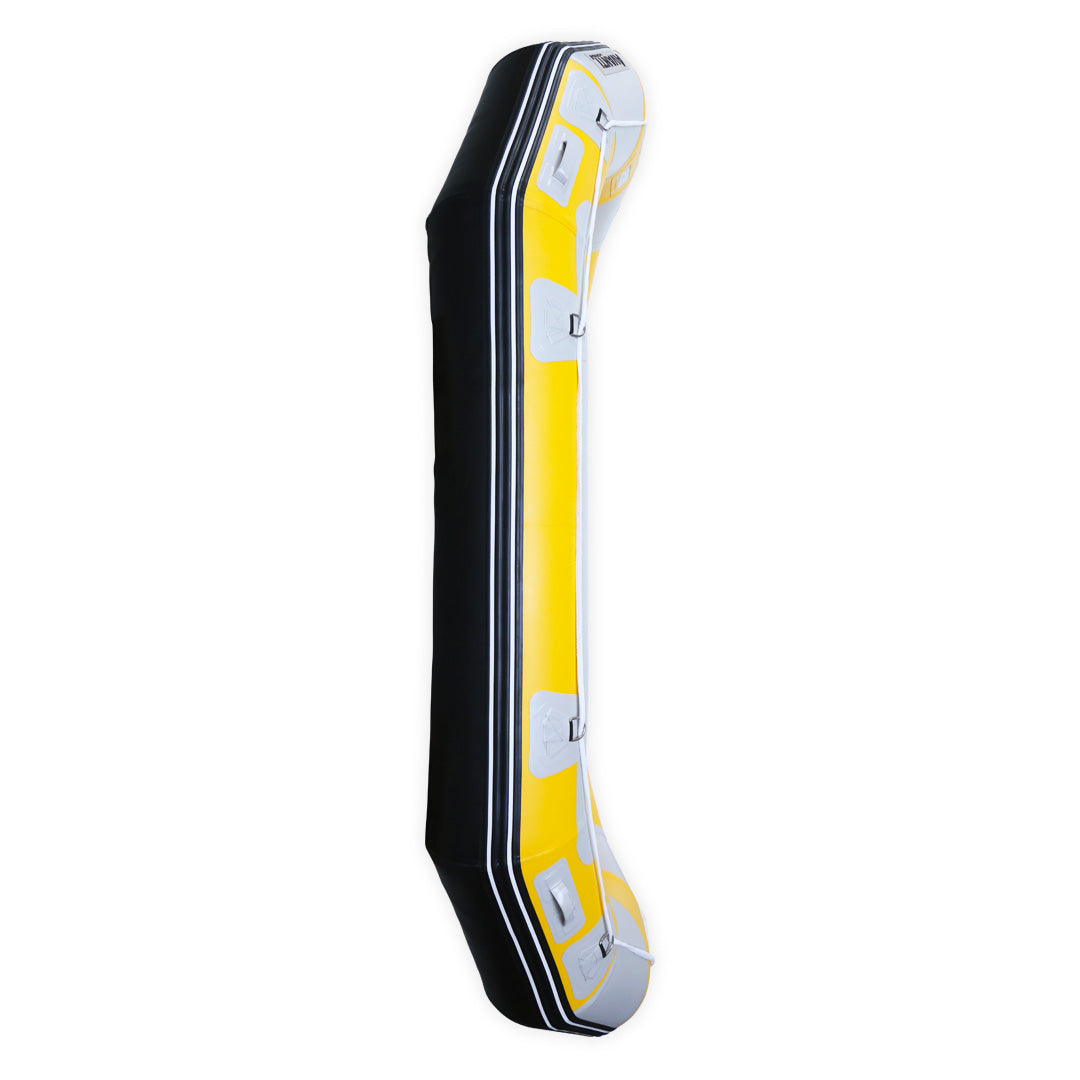

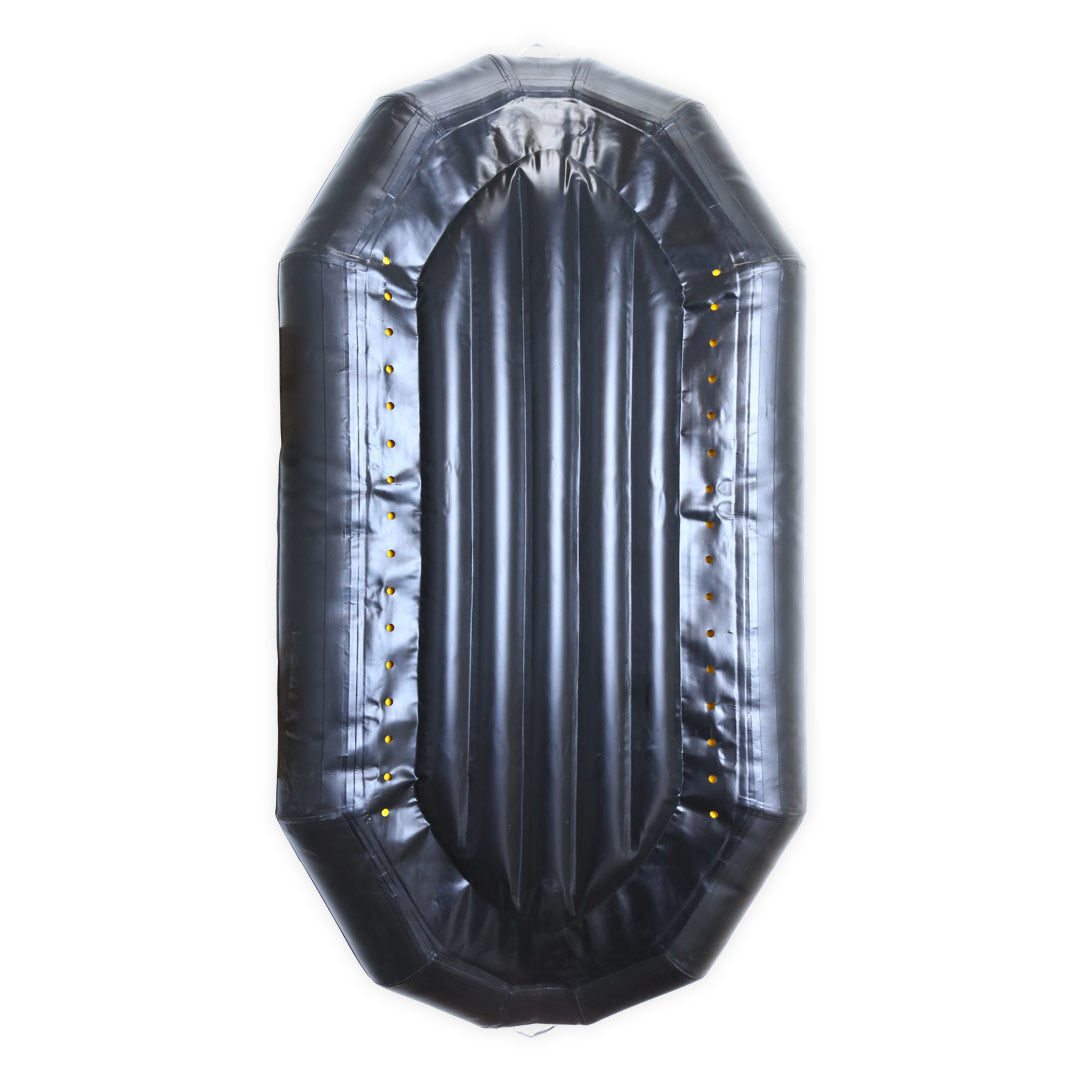

AVANTI 340 - MINI RAFT FOR 6 PEOPLE

RA3249_Y

Price
€1.780,99
€1.780,99

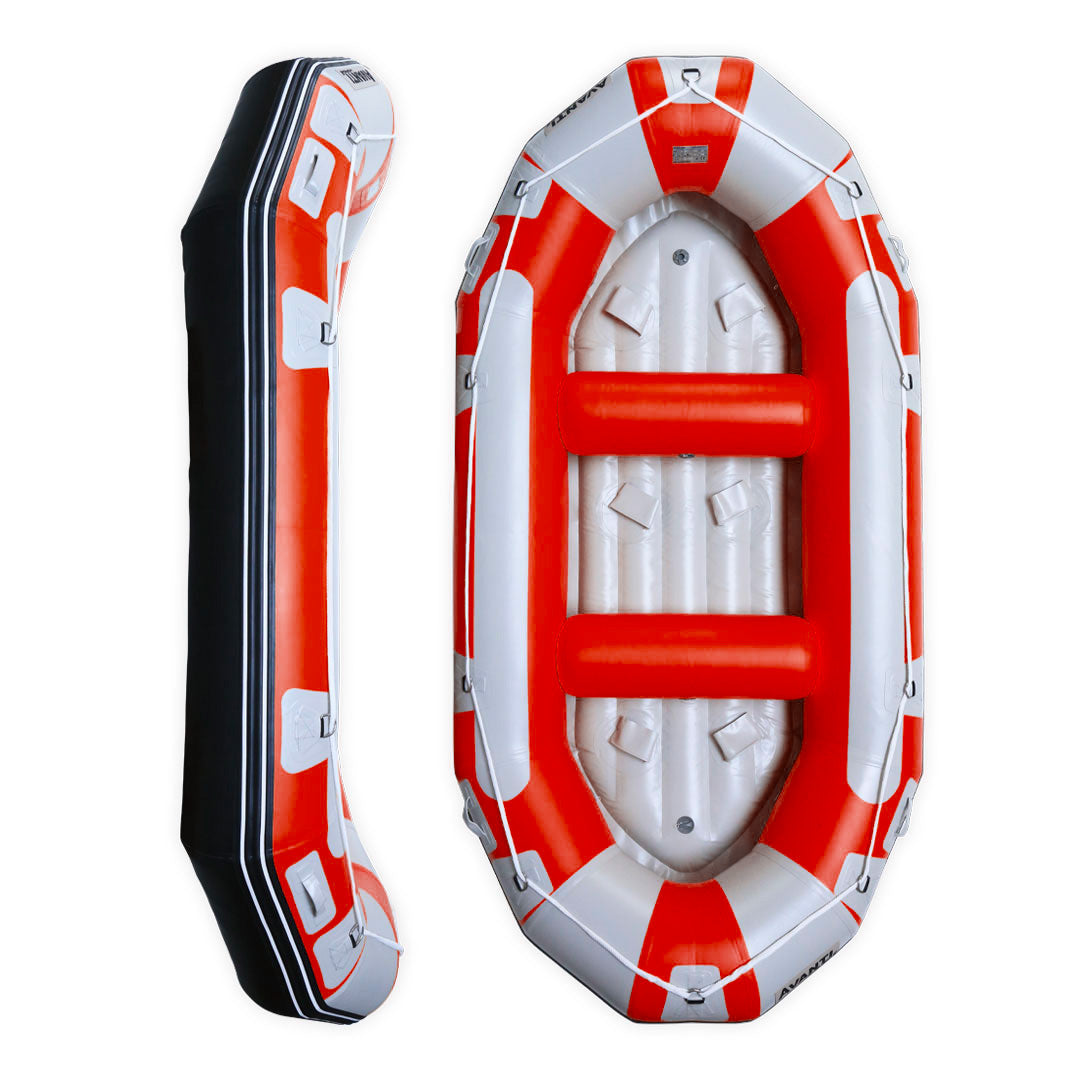

The AVANTI 340 raft is a 6-person model from Aquadesign's most affordable range . Twice as light and economical as a standard raft, it features a more flexible fabric for increased flex and maneuverability . Equipment includes: 2 removable 26.5 cm diameter thwarts (straps), 10 D-rings , 6 handles , self-bailing holes , a Leafield A6 overpressure valve , and 4 + 2 + 1 air chambers . Dimensions: 340 x 170 cm , internal width 82 cm , tubes 44 cm in diameter , weight 44 kg , load capacity < 700 kg , maximum length with flat frame 130 cm . Measured rocker : 21 cm (base) / 65 cm (peak). Colors: yellow, red . Aquadesign's top-rated raft in Europe .

Color
Available In Stock
Free return
2-year warranty
AVANTI 340 - MINI RAFT FOR 6 PEOPLE
  • Overview
  • Specifications
BENEFITS

KEY STRENGTHS

  • REMOVABLE THWART

    For maximum versatility, the thwarts are removable thanks to a system of bars.

  • FOOT CUP SHOES

    To ensure comfort, support and safety, the Avanti range is equipped with foot cups that fit snugly.

  • CARRYING HANDLE

    Reinforced handles, doubled and sewn at the base to ensure easy, comfortable and durable transport.

  • 10 CM RAGING BAND

    For optimal side protection and extended service life, the range is equipped with a rubbing strip.

  • RINGS D

    To ensure the safety of the entire crew, a lifeline is positioned around the perimeter of the raft.

  • Number 1 in Europe

    Thanks to the expertise accumulated by Aquadesign since 1988, the AVANTI range of PVC rafts is number 1 in Europe.

dimensions, weight and specs

Technical specifications

Capacity
6 Personnes
Length
340 cm / 11'2"
Width
170 cm / 67"
Inner width
82 cm / 32"
Longueur maximale du cadre plat
130 cm / 52"
Tube diameter
44 cm / 17"
Thwarts
2 Thwarts Amovibles
Thwart diameter
26.5 cm / 10.4"
Rocker Avant
21 cm / 8.3" (Mesure sol/ base des tubes) - 65 cm / 26" (Mesure sol/ sommet des tubes)
Rocker Arrière
21 cm / 8.3" (Mesure sol/ base des tubes) - 65 cm / 26" (Mesure sol/ sommet des tubes)
Number of air chambers
4 + 2 + 1
Safety valve
1 Leafield – A6
Self-bailing system
Trous auto videur
D-rings
10
Handles
6
Weight
44 kg / 97 LBS
Maximum Load
<700 kg / <1543 lbs
AVANTI RANGE

REINFORCED CONSTRUCTION

  1. 1000 Dtex fabric tube
  2. Superior reinforcement of the tubes with 1100 Dtex fabric
  3. Upper part of the finned bottom made of 1000 Dtex fabric
  4. Lower part of the finned bottom made of 2000 Dtex fabric
  5. Lower tube lining in abrasion-resistant fabric
  6. Lower tube reinforcement with a high-strength grooved band
DESCRIPTION, MATERIALS & ADVICE

LEARN MORE

The Aquadesign AVANTI 340 raft is a 6-person boat in the most affordable range. It boasts a construction that is twice as light and economical as a traditional raft, and a more flexible fabric for greater flex and maneuverability. Considered number one in Europe by Aquadesign, the AVANTI 340 combines capacity, safety, and controlled operating costs.

Its dimensions of 340 × 170 cm (with an internal width of 82 cm) and its Ø 44 cm tubes offer comfortable space and reassuring support for the crew. The onboard layout meets the needs of the terrain: 2 removable Ø 26.5 cm thwarts with a bar system to adjust position and balance, 10 D-rings for lifelines and tie-downs, 6 handles for easy carrying, and self-bailing holes to remove any water taken on board. Safety is enhanced by 4 + 2 + 1 air chambers and a Leafield A6 overpressure valve. Logistically, the maximum length of the flat frame reaches 130 cm, the weight is 44 kg, and the maximum load is less than 700 kg.

Regarding material strength, the indicative weights are clearly stated: 1450 g/m² (51 oz) for the bottom fabric and 1100 g/m² (39 oz) for the tubes. The rocker is indicated using two methods, for both the front and the rear: 21 cm (from the bottom to the base of the tubes) and 65 cm (from the bottom to the top of the tubes) — a useful feature for assessing performance on rivers. Finally, the AVANTI 340 is available in Yellow and Red.

In the end, the AVANTI 340 stands out as a versatile and accessible 6-seater: 2x lighter and more economical, softer fabric for mobility, removable 26.5 cm diameter thwarts for seat adjustment, complete equipment (D-rings, handles, self-bailer, Leafield A6, redundant chambers) and materials with clearly defined indicative weights for everyday durability.

1000 Dtex PVC fabric tube, 1100 Dtex PVC top reinforcement, 1000 and 2000 Dtex PVC fabric finned bottom, abrasion-resistant fabric, grooved band, 10cm rubbing strip

Weight/m2 of the tube fabric: 1100 g / 39 oz (This is the weight per square meter of the tube fabric; this value is an indicator of the fabric's strength.)

Weight/m2 of the background fabric: 1450 g / 51 oz (This is the weight per square meter of the background fabric; this value is an indication of the fabric's strength.)

A well-maintained AVANTI raft will provide you with years of safe adventures. To preserve its performance and durability, adopt these best practices.

  • Rinse after each outing

After each use, rinse your AVANTI thoroughly with clean water.

✔️ Remove sand, mud and debris to prevent premature wear of the PVC.

✔️ Use a soft sponge to avoid scratching the coating.

  • Dry completely before storing

✔️Never store your raft wet.

✔️ Let it dry completely in the shade, as prolonged exposure to the sun accelerates the aging of the fabric.

✔️ Check that all chambers and the bottom are completely dry to prevent mold and bad odors.

  • Suitable storage

Store your AVANTI in a dry, ventilated place, away from extreme temperature variations.

✔️ Avoid any proximity to heat sources (radiator, engine).

✔️ Protect it from rodents and insects.

  • Pressure and inflation

Maintain the recommended pressure of 2.5 PSI .

✔️ Overinflation weakens seams and valves.

✔️ In warm weather, slightly reduce the pressure to compensate for air expansion.

  • Preventive maintenance

✔️ Regularly inspect valves, seams and bonding areas.

✔️ Repair any micro-perforations immediately using a suitable kit.

To access the manual, click on the following link: Avanti range manual
